ProtoFab

1966-1977 Bronco 23-Gallon Carbureted Stainless Steel Fuel Tank (PF332)

1966-1977 Bronco 23-Gallon Carbureted Stainless Steel Fuel Tank (PF332)

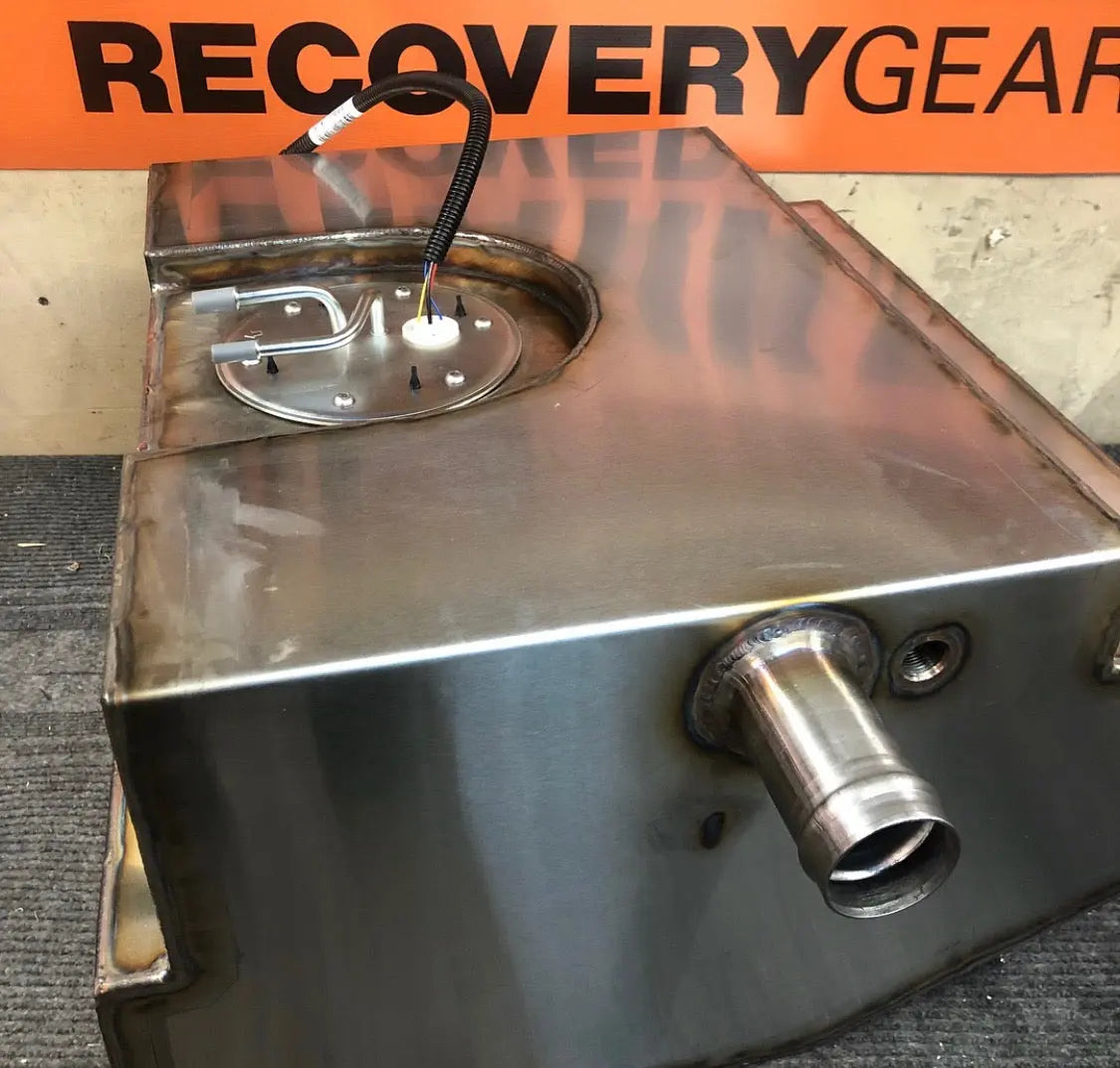

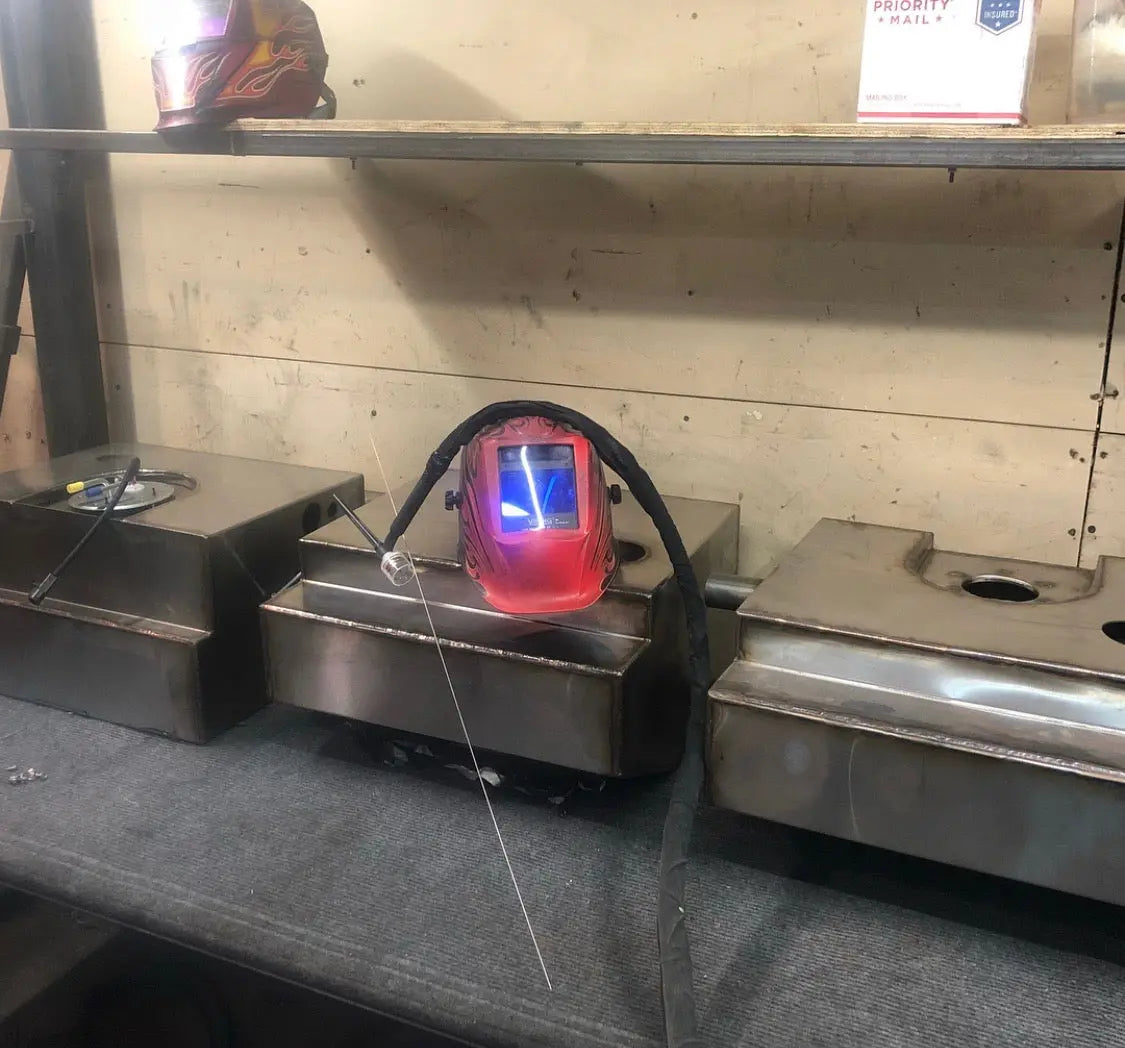

1966-1977 Bronco 23 Gallon Stainless Steel Gas Tank. This little beauty is sure to turn heads. Our CNC cut 14G brushed stainless steel tanks are built and welded right here in our shop. The only thing we do not build is the sending unit module.

The other great thing about this tank is that it is convertible. If you decide you want to run an EFI system, no problem! All you have to do is remove the piece of stainless steel tubing that is placed where the pump should be, re-attach the pump in the tank and you're good to go. There is no need to buy a new tank when you're ready to convert to EFI.

Gauges

If you are using Dakota Digital gauges or any other programable gauge, there is no need to select the 10-73 Ohm range conversion because they are programmable to work with most senders. For these types of gauges, the ohm range we use is 16-158 because that is what comes with the fuel pump/sender combo that we use. (Note that  you're ordering the carbureted tank, so we remove the pump from the setup and insert a piece of stainless steel tubing in place of the fuel pump.) If you have questions, please reach out to us before ordering.

These gauges are known to work with our set up:

  • Dakota Digital - Programmable
  • Ford up to 1986 - 73-10 Ohms
  • Ford 1987 & up - 16-158 Ohms

FAQ

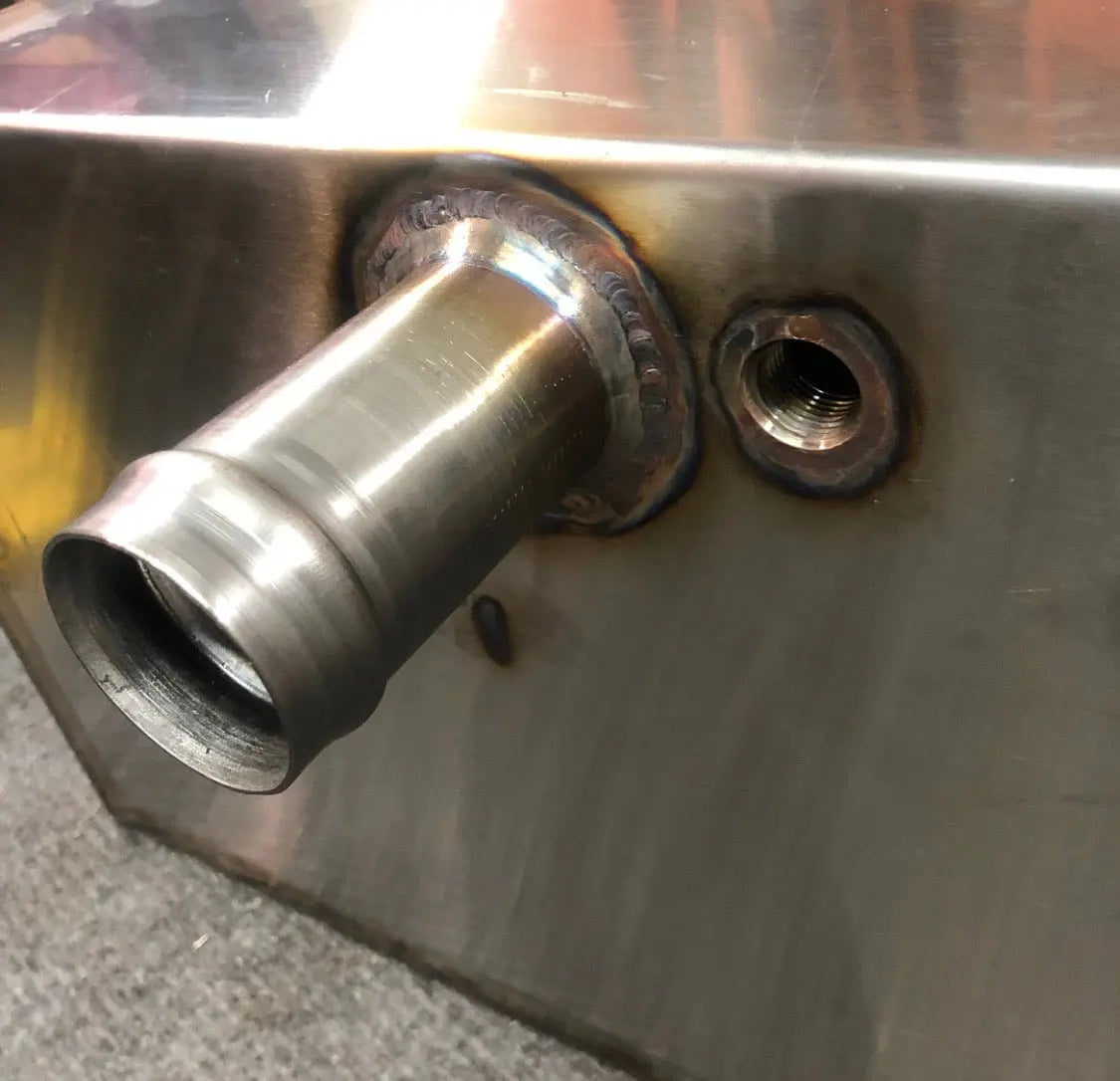

Q: What size is the Filler neck?

A: We use a 1 3/4" filler neck with a barb fitting on our current tanks. Previous tanks were made with a 2" filler neck.

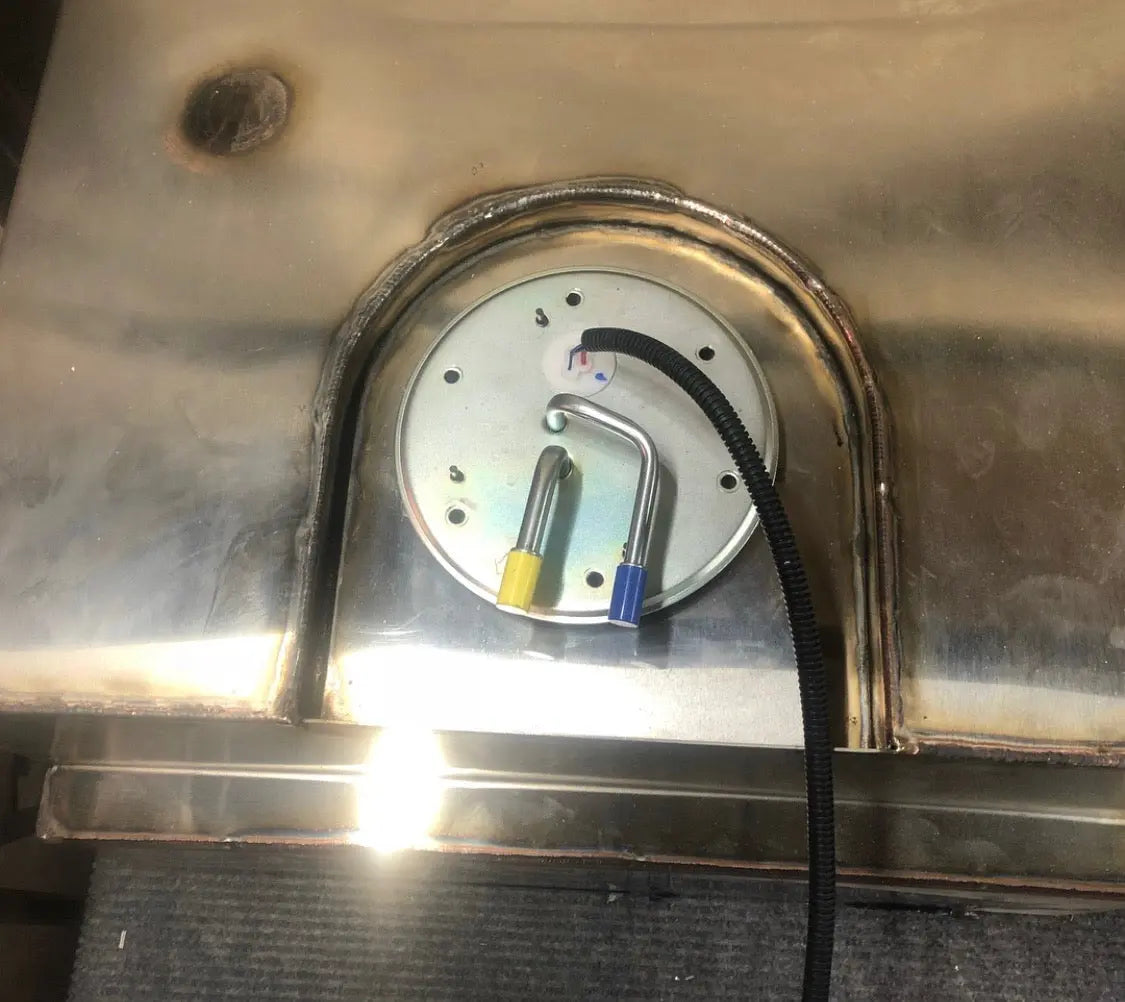

Q: What size are your pressure and return lines?

A: The pressure line is 3/8" and the return line is 5/16".

Q. Where can I buy a quick connect style hose?

A. Dorman makes a hose that you can use. It's an aftermarket repair part. The part # is 800-054 and it is a "5/16 In. Quick Connector, Straight W/ 18 In. Of 3/8 In. Nylon Tube And A Union"

Q: Are there any baffles in your tank?

A: Yes, there is one baffle in the tank.

Q: What size is your vent tube?

A: We use 1/2" NPT vent fittings. You can use any tube you want so long as it has the same fitting.

Q: Do you use gaskets and glue on your tanks?

A: Absolutely not. All our tanks are made with O-ring connections. No glue or cork gaskets here.

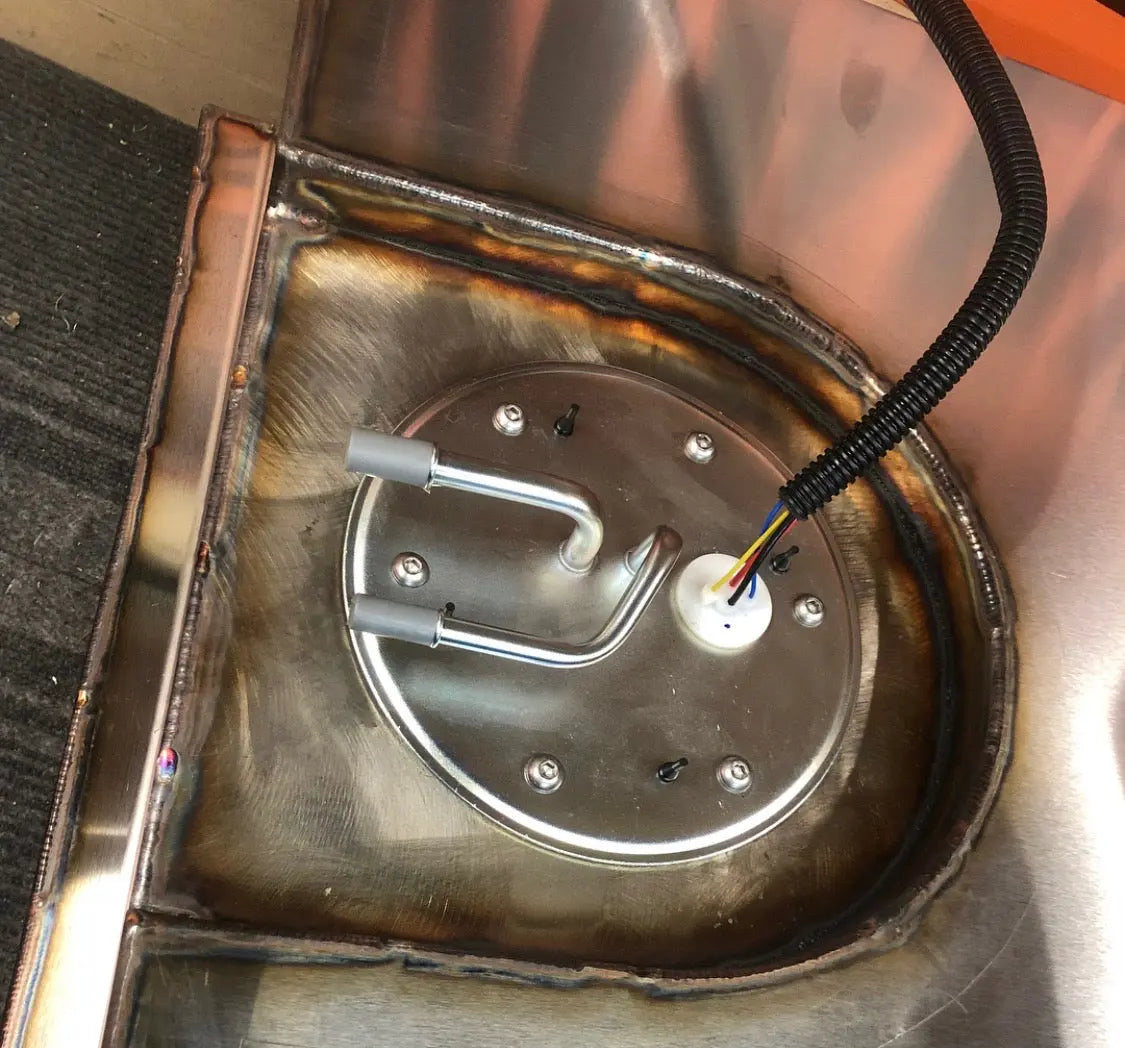

Q: Is the sending unit module mounted to the tank with sheet metal screws?

A: No. Our modules are mounted with machined 1/4 - 20 stainless steel bungs and hardware which means there are no metal chips in our tanks from sheet metal screws.

Q: Is your tank ready to install from the box?

A: Yes. Our tanks are fully assembled and ready to go.

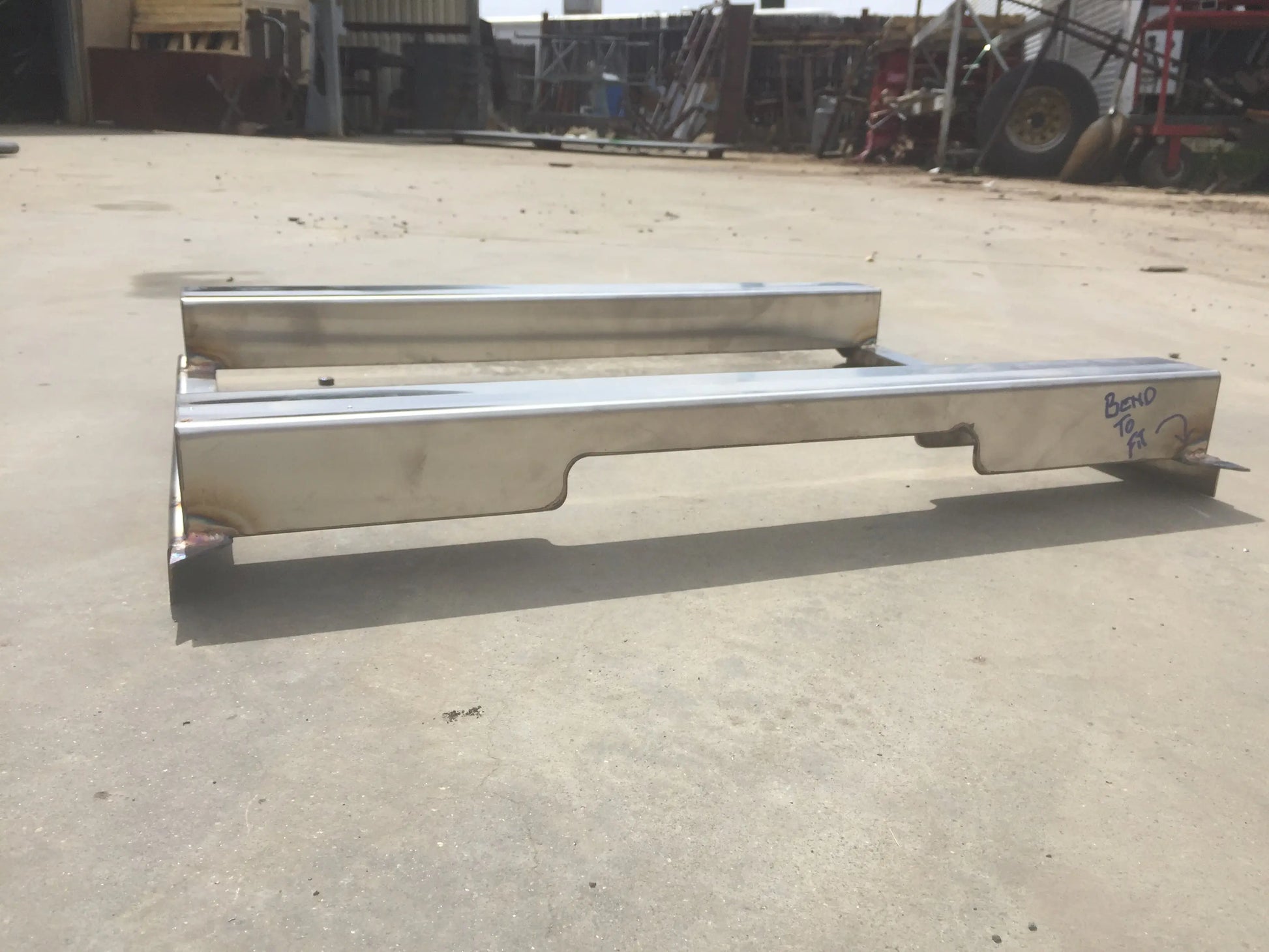

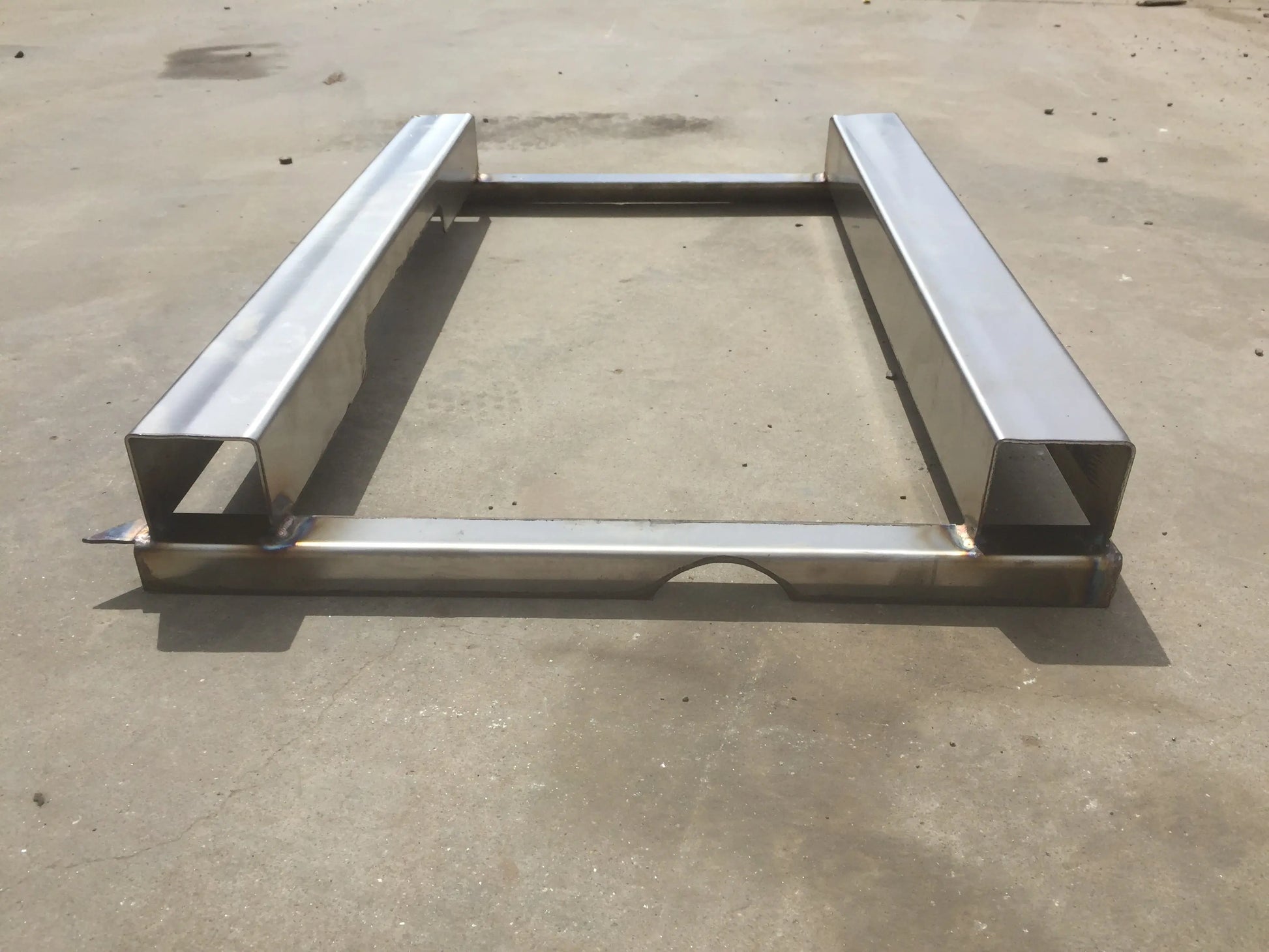

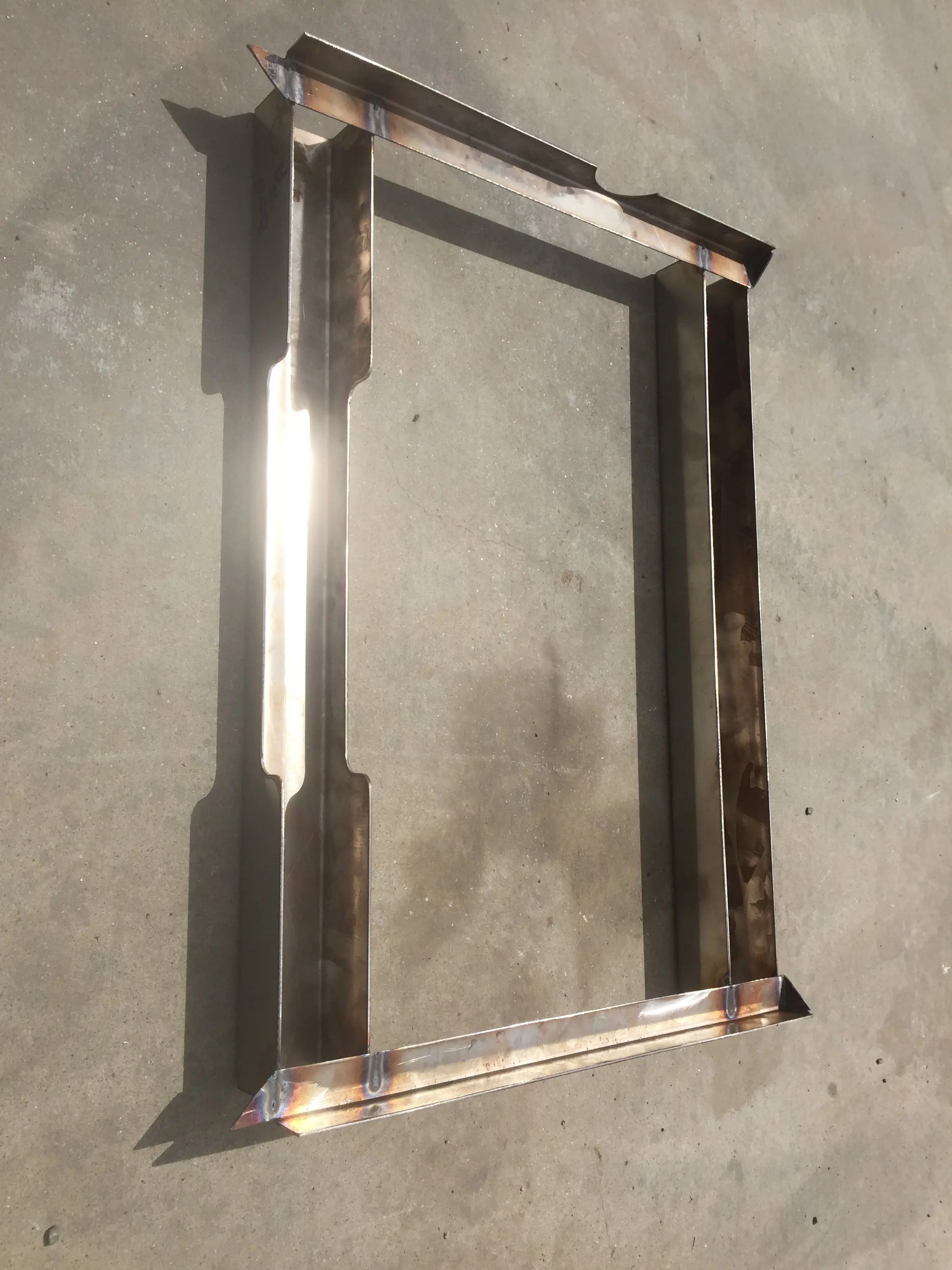

Q: I have a body lift on my Bronco, how does the body lift adapter work?

A: The adapter sits between the body of the truck and the tank so that when you mount the tank, it is in the correct location for the strap to work.

If there are any unanswered questions that you may have, please don't hesitate to reach out to us directly!

Regular price $1,200.00 USD
Regular price Sale price $1,200.00 USD
Sale Sold out
Shipping calculated at checkout.
Gauge Ohms
View full details
