1966-1977 Bronco RockSolid Double Rack Rear Bumper (PF304)
1966-1977 Bronco RockSolid Double Rack Rear Bumper (PF304)

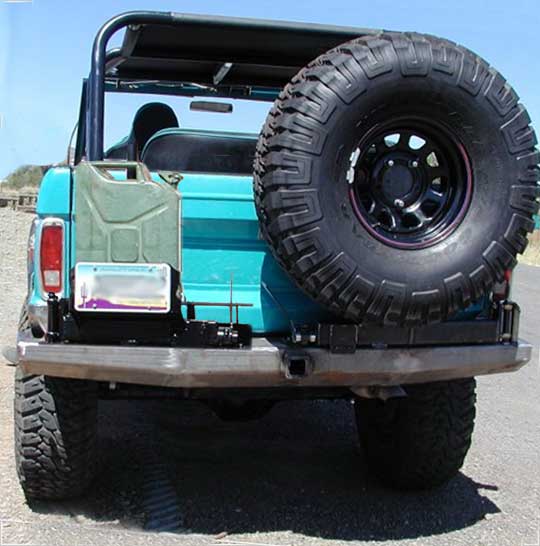

Tired of having to store your fuel can inside your Bronco? We have the solution for you!
That's right, an early Bronco bumper with fuel carrier. This sleek bumper is made from CNC cut ¼” plate steel and offers the best body protection and style for your early Bronco. Our design wraps around the rear corners of your fenders to provide superior body protection and includes a 2” unrated receiver hitch (can be ordered without hitch).
This bumper comes with our unique tire rack designed to hold a maximum of 37” spare tire with a back spacing of 5.25". If you are running anything with a larger backspacing, you will need to use wheel spacers.
Also included with this great bumper is our NATO Can Rack (also known as Jerry Can Rack) and it can hold one 5 gallon (20 liter) can. You can upgrade this rack to a Dual NATO Can basket which holds two NATO cans.
Both the Tire Rack and Jerry/NATO Can Racks are made of 2"x 3" x 3/16" wall rectangular tube. The hinge uses two 3/4" permanently lubricated heim joints to open the racks which ensures a smooth and easy hinge to maintain. Included with these rugged racks, is our fully adjustable cam latch system that will offer many years of rattle free use. Easy bolt-on installation. No drilling required!
This product ships RAW (unpainted) steel via truck freight or UPS depending upon your entire order and what is most economical.
Edition
Tack Kit: A tack welded kit that arrives in its true form and will require several hours of welding and grinding to complete. It is not a flat kit and will not be more economical when shipping.
Welded: Arrives as unfinished raw-steel ready to install. We ALWAYS recommend test fitting the bumper to your truck BEFORE applying paint or powder coat. Once you have successfully mounted the bumper to your truck, it is safe to remove it and apply a finish.
Rack Lockout System:
Tired of your tire carrier swinging around and hitting the side of your truck or swinging back on you when you're trying to get into the back? This is the answer you have been waiting for! Our new system stops the carrier automatically with our new t-handle pin* system. The t-handle pins are polished 1/2" billet aluminum. The handle slides along a plate until it is in the optimal position and then the pin is released into a slot cut out of the plate. The system is also over-rideable if you want the rack to swing wider than the plate allows, simply pull up on the t-handle and continue pushing it past the plate. We do not manufacture the t-handle pins, they are purchased from another company and integrated into our product.
Orders placed before 06/16/2025 will come WITH a receiver and the 5/8" pivot system unless ordered otherwise.
Orders placed after 06/16/2025 will automatically come with a 3/4" pivot system and the branded pivot brace. If you desire a receiver, you will need to add the receiver to the bumper. The receiver will be an UNRATED receiver, however it will be capable of towing whatever your BRONCO is capable of towing. Please use your best judgement when using this receiver and do not load more than your truck is capable of handling safely.
