1978-1985 Bronco 30 Gallon Low Profile Stainless Steel Carbureted Fuel Tank (PF861)
1978-1985 Bronco 30 Gallon Low Profile Stainless Steel Carbureted Fuel Tank (PF861)
Tired of that belly dragging, diaper of a fuel tank hanging off your full size Bronco rear end?

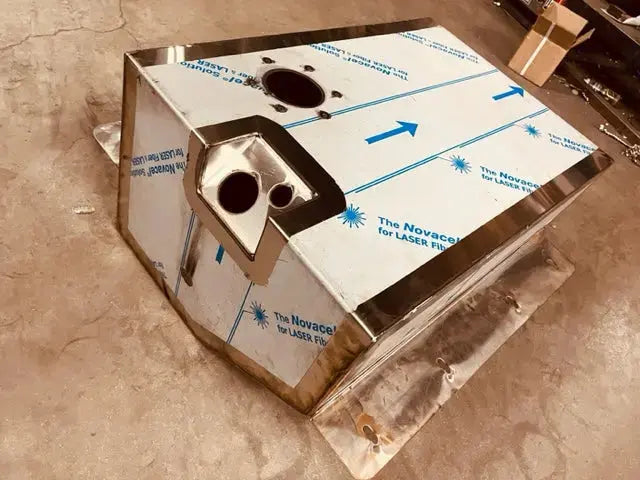

So were we! Enter our new low profile stainless steel fuel tank with a 30 gallon capacity. Made from 14 gauge brushed stainless steel this low profile tank is exactly what you need to make your offroad excursions less stressful. Say goodbye to the belly dragging stock tank and hello to our new low profile tank which adds almost 2" of added ground clearance and we added an angle to the back side of the tank so when you're showing off your new ProtoFab rear bumper to all your buddies, you won't have the eye sore of that huge stock tank sticking out from down below.
Added bonus, if you decide to upgrade to an EFI system, you don't need to buy a new tank! The center units originally come with fuel pumps that we remove for carbureted tanks. If you decide to do EFI, just put a fuel pump back on the unit and you're good to go!
Gauges
The units we run are an OEM style 1999-2004 Ford F-150 without Supercharger. 78-86 Broncos running a stock gauge would need to order the 10 (Full) - 73 (Empty) sending unit conversion. If you are running programable gauges, please choose the 16-158. So long as your gauges are programmed to match the sending unit range that you order your tank with, they will work cohesively.
FAQ
Q: What size is the Filler neck?
A: We use a 1 3/4" filler neck with a barb fitting on our current tanks. Previous tanks were made with a 2" filler neck.
Q: What size are your pressure and return lines?
A: The pressure line is 3/8" and the return line is 5/16".
Q: Are there any baffles in your tank?
A: Yes, there is one baffle in the tank.
Q: What size is your vent tube?
A: We use 1/2" NPT vent fittings. You can use any tube you want so long as it has the same fitting.
Q: Do you use gaskets and glue on your tanks?
A: Absolutely not. All our tanks are made with O-ring connections. No glue or cork gaskets here.
Q: What fittings do you use?
A: Modern OEM style high pressure fittings with NO HOSE CLAMPS. They are push connect.
Q. Where can I buy a quick connect style fuel line?
A. Dorman makes a hose that you can use. It's an aftermarket repair part. The part # is 800-054 and it is a 5/16" Quick Connector, Straight W/ 18" Of 3/8" Nylon Tube And A Union"
Q: Is there a female quick connect that I can use to plug into the tank?
A: Yes! OE and aftermarket pieces are available. Dorman part # is 645-708 Ford OE part # is 1U2Z-14S411-BGA
Q: Is the center unit mounted to the tank with sheet metal screws?
A: No. Our center units are mounted with machined 1/4 - 20 stainless steel bungs and hardware which means there are no metal chips in our tanks from sheet metal screws.
Q: Is your tank ready to install from the box?
A: Yes. Our tanks are fully welded and ready for fuel.
If there are any unanswered questions that you may have, please don't hesitate to reach out to us directly!
