Bilstein

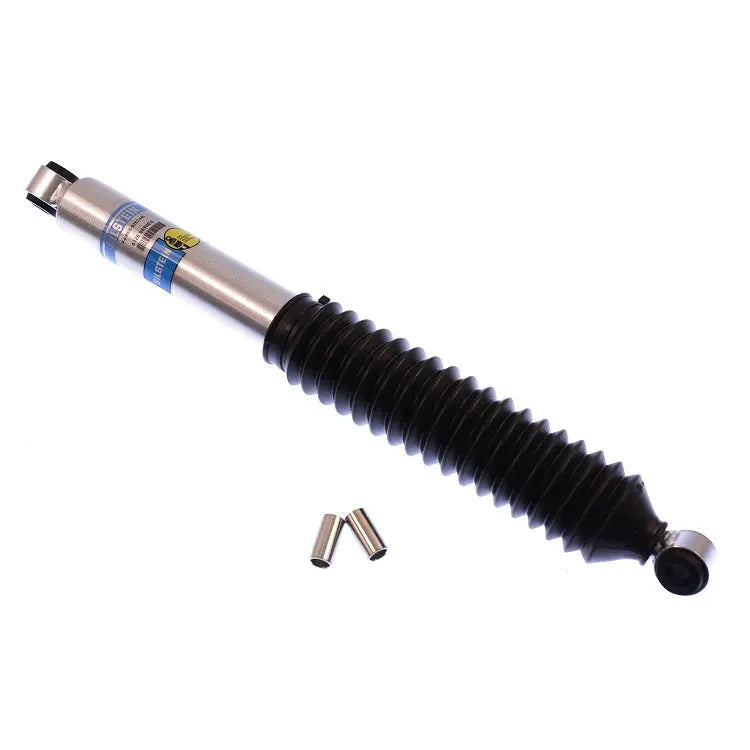

Bilstein B8 5125 Series Shock Absorber (Rear / 0 - 1.5") 66-77 Bronco
Bilstein B8 5125 Series Shock Absorber (Rear / 0 - 1.5") 66-77 Bronco
Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
Description:
B8 5125-Shock Absorber
Series:
5125 Series
Boot Included:
Black Bellows
Internal Design:
Monotube
Lower Mount Type:
Eye 5/8in
Upper Mount Type:
Eye 5/8in
*Collapsed Length (IN):
13.66
*Extended Length (IN):
21.63
Body Design:
46mm ID Smooth Body (Non-Coilover)
Finish:
Zinc Plated
Reservoir:
No
*Collapsed Length (MM):
347
*Extended Length (MM):
549.5
Title:
Bilstein Shock Absorbers
Collapsed Length (IN):
13.66
Collapsed Length (MM):
347
Extended Length (IN):
21.63
Extended Length (MM):
549.5
Body Diameter (ID):
46mm
Collapsed Length (IN) Rounded:
14
Compression @0.52m/s:
700
Extended Length (IN) Rounded:
22
Mount Type:
Eye-to-Eye
Optional Reservoir Clamp:
N/A
Rebound @0.52m/s:
2550
Body Design:
Smooth Body (Non-Coilover)
Series:
B8 5125
Body Inside Diameter:
46mm
Collapsed Length:
347mm
Collapsed Length Rounded:
14 in.
Extended Length:
549.5mm
Extended Length Rounded:
22 in.
Lower Mount Type:
Eye 0.625 in.
Rebound @0.26m/s:
2550
Reservoir Included:
No
Upper Mount Type:
Eye 0.625 in.
WARNING CA Proposition 65:
Yes
WARNING CA Proposition 65 Message:
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
