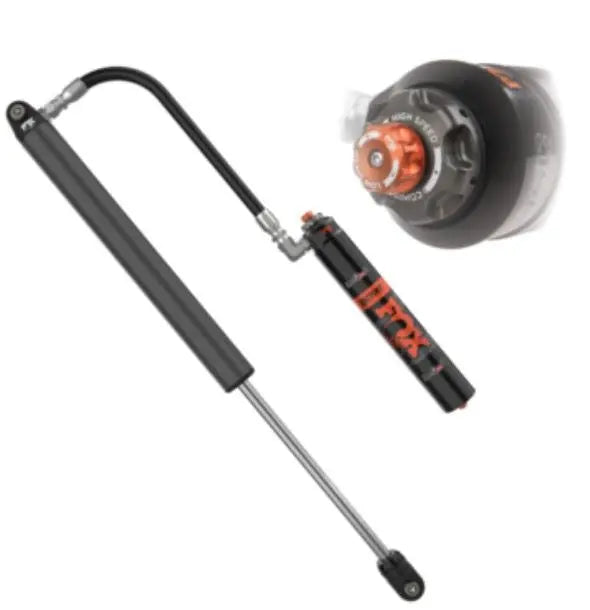

Fox Factory Series 2.5 Smooth Body 12" Shock with DSC Adjuster
Fox Factory Series 2.5 Smooth Body 12" Shock with DSC Adjuster
Fox Factory Series 2.5 Smooth Body 12" Shock with Dual Speed Compression (DSC) Adjuster provides some of the best damping out there and they are easy to mount. Smooth Body shocks are ideal for applications that are already equipped with a primary spring to suspend the vehicle’s weight (i.e. leaf springs or coil springs). Help your truck ride its best with Fox Shocks!
What is a Dual Speed Compression (DSC) Adjuster
The Fox Dual Speed Compression (DSC) adjuster for 2.5 Factory Series Series Smooth Body Shock is a great option for those who want to simplify tuning. Dial in low speed compression to prevent bottoming out over off-road obstacles like boulders, and dial in high speed compression to help you get more out of your suspension while you're bombing down trails.
Why Remote Reservoir?
Remote reservoir smooth body shocks have a few advantages over emulsion shocks.
- Heat tolerance: The remote reservoir increases oil volume internally and in the reservoir which increases the heat capacity and the heat loss.
- Ride quality and durability: Remote reservoirs reduce the gas pressure increase as the shock collapses which reduces friction and improves the ride quality and durability of the shock. The separation between the oil and gas also provides more consistent damping.
Source: AccuTune Offroad
Product Specs
| Body Finish | Dual coated body with proprietary FOX Grey Cerakote® protective ceramic coating over zinc plated basecoat for improved corrosion resistance and durability |
|---|---|
| Bearing | Wire ring bearing design |
| Seals | High-temp Viton® redundant sealing pack system with main seal, wiper seal and scraper seal |
| Wear Band | PTFE coated bronze impregnated steel piston wearband |
| Eyelet | 1.95” black anodized billet aluminum lower eyelet standard |
| FAV Cap | Orange anodized billet aluminum FAV cap |
| Extended | 32.450 |
| Compressed | 20.500 |
| Top Mount | Eyelet |
| Bottom Mount | Eyelet |
| Reservoir | Remote |
| Reservoir Size | 2.55 x 10.00 |
| Hose | -10 x 18.00 |
| Mounting | 1/2 x 1-1/2 |
Source: RideFox.com
