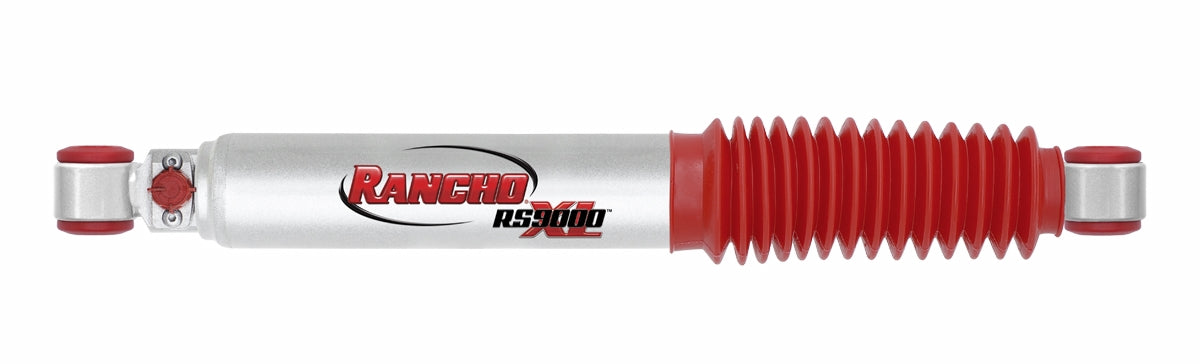

Rancho 9000XL Shock Absorber RS999118
Rancho 9000XL Shock Absorber RS999118
The Rancho® RS9000™XL 9-position adjustable series delivers nine levels of performance to on- and off-road trucks, SUVs and Jeeps. Globally recognized as the first 9-position manually adjustable ride control series in the off-road market, the advanced RS9000XL series is ideal for on- and off-road use, towing and more. The adjustable damping enhances ride characteristics by counteracting the additional unsprung mass inherent in larger tire and wheel combinations. Engineered and manufactured in the U.S., all RS9000XL series units are covered by a Limited Lifetime Warranty.
Vehicle Specifics:
1966-1977 Bronco- POSITION: Rear
- VEHICLE HEIGHT: 2"
- NON-STANDARD QUALIFIER: Serial # 830001 & After;RS8125 Axle Shim Kit may be Required on Rear Axle for Shock-to-Axle Clearance
- QTY REQUIRED: 2
Front 0″ see RS999117 | Rear 0″ see RS999113 | Front 2″ see RS9991151978-1979 Bronco
- POSITION: Rear
- VEHICLE HEIGHT: 2"
- NON-STANDARD QUALIFIER: RS8125 Axle Shim Kit may be Required on Rear Axle for Shock-to-Axle Clearance
- QTY REQUIRED: 2
Front Forward 0" (with Factory Quad Shocks), Front Rearward 2" (with Factory Quad Shocks), Front Right 2" (without Factory Quad Shocks), Front Left 0" (without Factory Quad Shocks) see RS999115 | Front Outer 2″ (Factory Quad Shocks) see RS999017 | Rear 0" see RS999113 | Front Right 0″, Front Rearward 0″ (Factory Quad Shocks), Front Left 2″ see RS999117 |1980-1996 Bronco
- POSITION: Rear
- VEHICLE HEIGHT: 0"
- NON-STANDARD QUALIFIER: RS8125 Axle Shim Kit may be Required on Rear Axle for Shock-to-Axle Clearance
- QTY REQUIRED: 2
Front Rearward 1" (with Factory Quad Shocks), Front 1" (without Factory Quad Shocks) see RS999136 | Front Forward 0" (with Factory Quad Shocks), 87-96 Front Rearward 4" (with Factory Quad Shocks) see RS999117 | Front 0" ( without Factory Quad Shocks), Front Rearward 0" ( with Factory Quad Shocks) see RS999029 | 87-96 Front Forward 4" (with Factory Quad Shocks) see RS999179 | Front Forward 1″ (with Factory Quad Shocks) see RS999115
Features and benefits
Large, 2.75-in. (70mm) tri-tube body*
Increased fluid capacity to operate cooler
Large, heavy-duty 18mm Nitro-Carb rod*
Increases scuffing resistance & corrosion protection
9-position tuning technology
Allows for optimal performance in any environment
9-Position adjustment knob
Provides a clear understanding of tuning level
Gas pressurization of shock
Minimizes air-to-oil mixture
Graphite-filled, Fluon banded piston
Provides smoother piston travel & greater responsiveness
1-1/4-in. Diameter Sintered Iron piston
Brings increased structural conformity
Rebound Bumper
Helps control the rebound motion during harsh driving conditions
Low-Friction, self-lubricating seal
Provides an extra layer of defense against dirt & debris
Liquid metallic finish
Premium long lasting finish
Protective boot
Added protection for the shock rod and oil seal
Double-welded loops
Added strength and durability
Limited Lifetime Warranty
Consumer protection
*Size varies by application
Source: Rancho.com
