Walbro
Walbro High Pressure Intank Pump 350LPH
Walbro High Pressure Intank Pump 350LPH
SUPPORTS 600+ HORSEPOWER AT 40 PSI 13.5V
Walbro / TI Automotive GSS351G3 Fuel Pumps for 600+ horsepower!
Walbro / TI Automotive's new GSS fuel pumps are lapping the field with increased flow rates of 350 lph. Our proven, robust gerotor technology is inside every 39mm straightwall GSS350, perfect for forced induction (turbocharged and supercharged) applications.
Features an upgraded outlet design with improved one piece construction
• OE quality
• 39mm diameter
• Easily mountable to new or existing in-tank hangers
• Manufactured in USA
Source: Walbrofuelpumps.com
This part # is GSS351 which is the GSS341 (255LPH) with a higher flow at 350LPH.

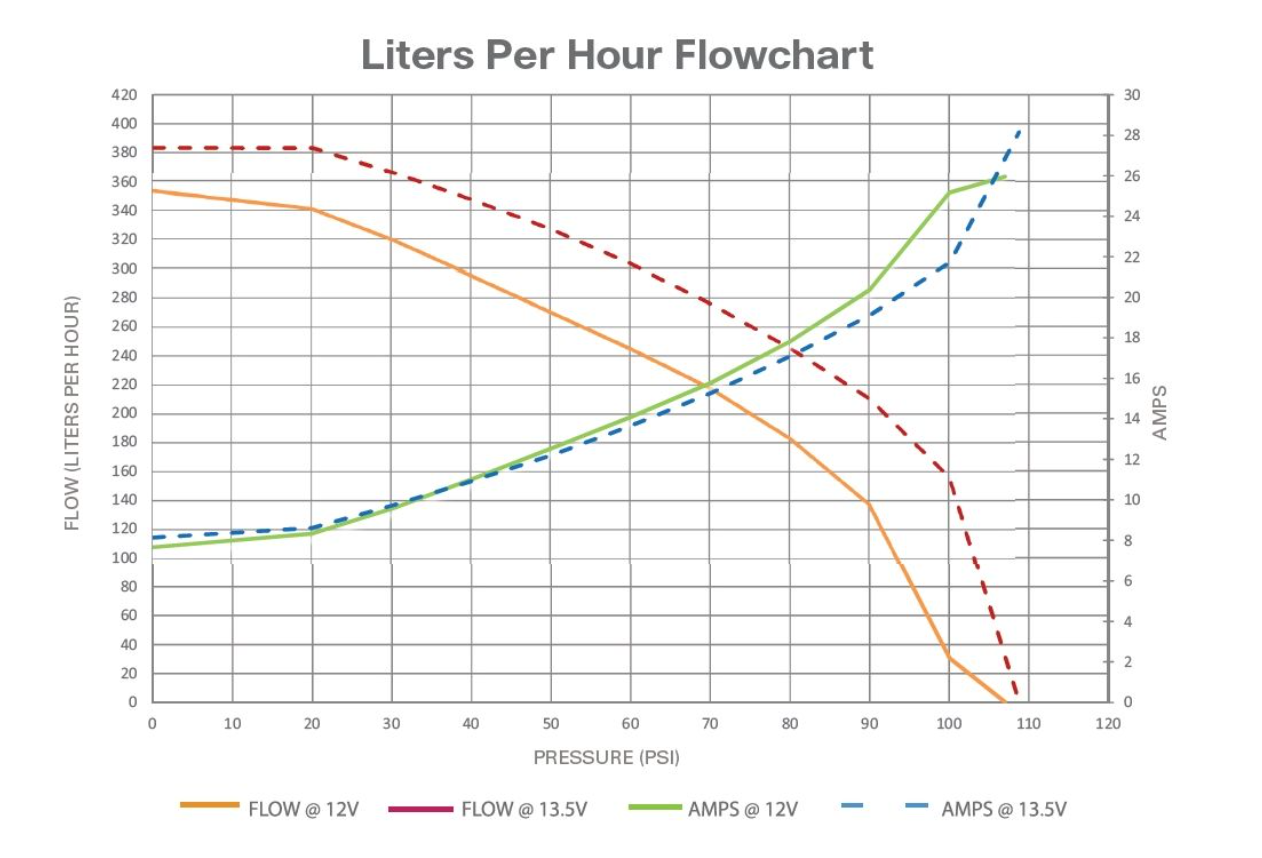

(See Flow chart in photos)
11mm Inlet – 180° from the outlet• 90 GPH RATED AT 40PSI 13.5V
Specifics
Type: Universal Intank Fuel Pump
Fuel: Gas
Horsepower: 600HP+
Flow Rate: 350 LPH (90 GPH)
Pressure: 40 psi
Fuel Pump Inlet & Outlet: 5/16"
Outlet Attachment: Hose barb
The Walbro high output in-tank electric fuel pumps available in flow rating of 350 liters of fuel per hour. These particular pumps flow significantly more fuel at higher pressure. For example, at 80 PSI the standard 255 lph pump will flow around 132 liters (35 gallons) per hour. At that same 80 PSI the equivalent HP (high pressure) fuel pump will flow over 210 liters (50 gallons) per hour. This pump is the same as the 255lph pump however it flows at higher rate of 350lph.
Walbro in-tank electric fuel pumps utilize a proven gerotor design. The outside dimensions, however, are compact enough to fit existing hanger assemblies, without modification. Coverage includes most popular Acura and Honda, and many other Import applications.
OPTIONAL UNIVERSAL INSTALLATION KIT: While the pump is available ala carte, installing this pump without adequate virtually pre-filtration guarantees early failure not covered by warranty. Installing this pump with an old filter can lead to similar results. The universal installation kit offered as an upgrade to this pump features one of our depth media filters. This media acts as a wicking mechanism, feeding fuel to the pump even when the filter is only partially submerged. Also included is our GSS wiring harness that allows you to make safe, secure electrical connection to your new pump.
