Warn

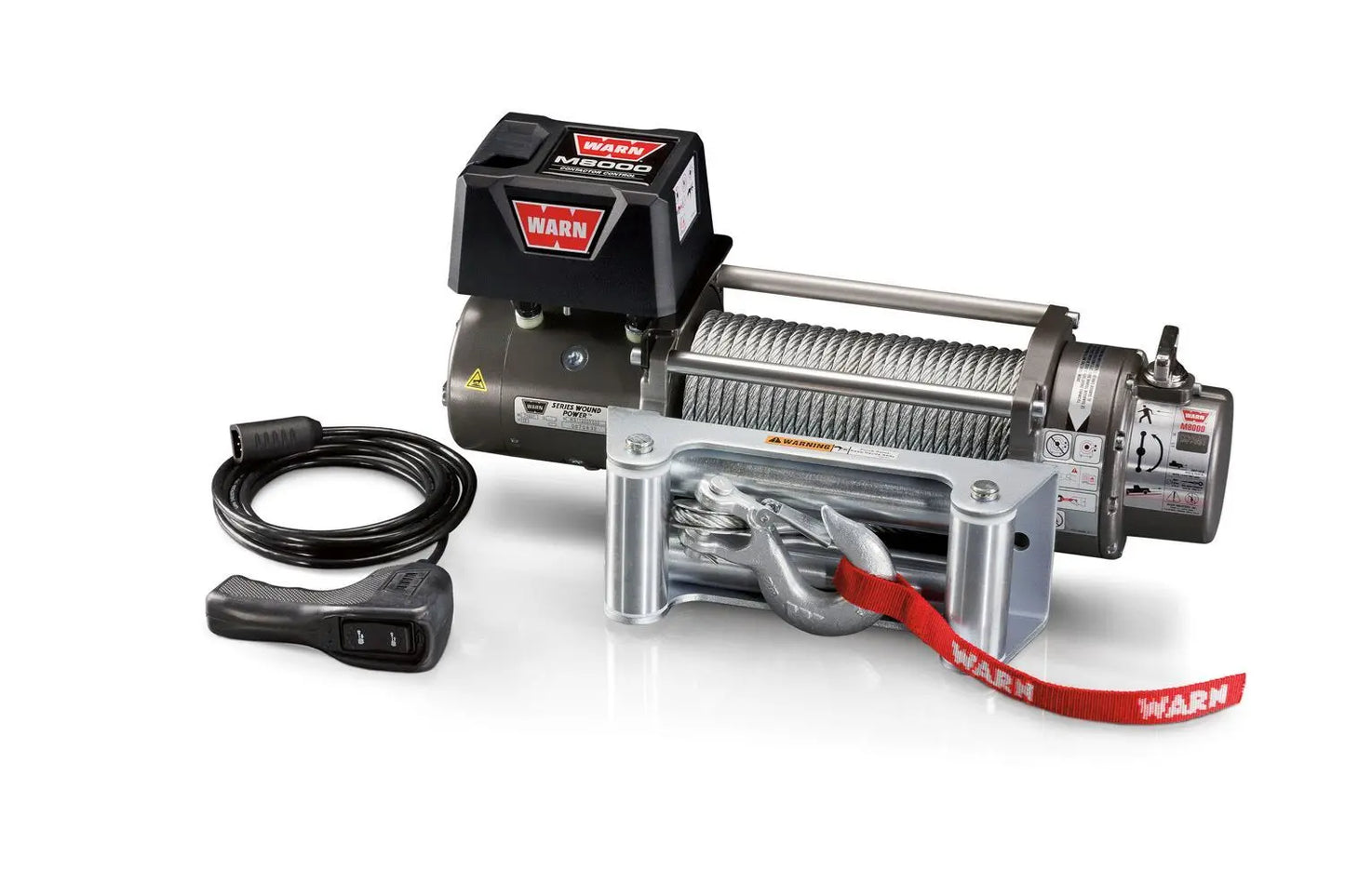

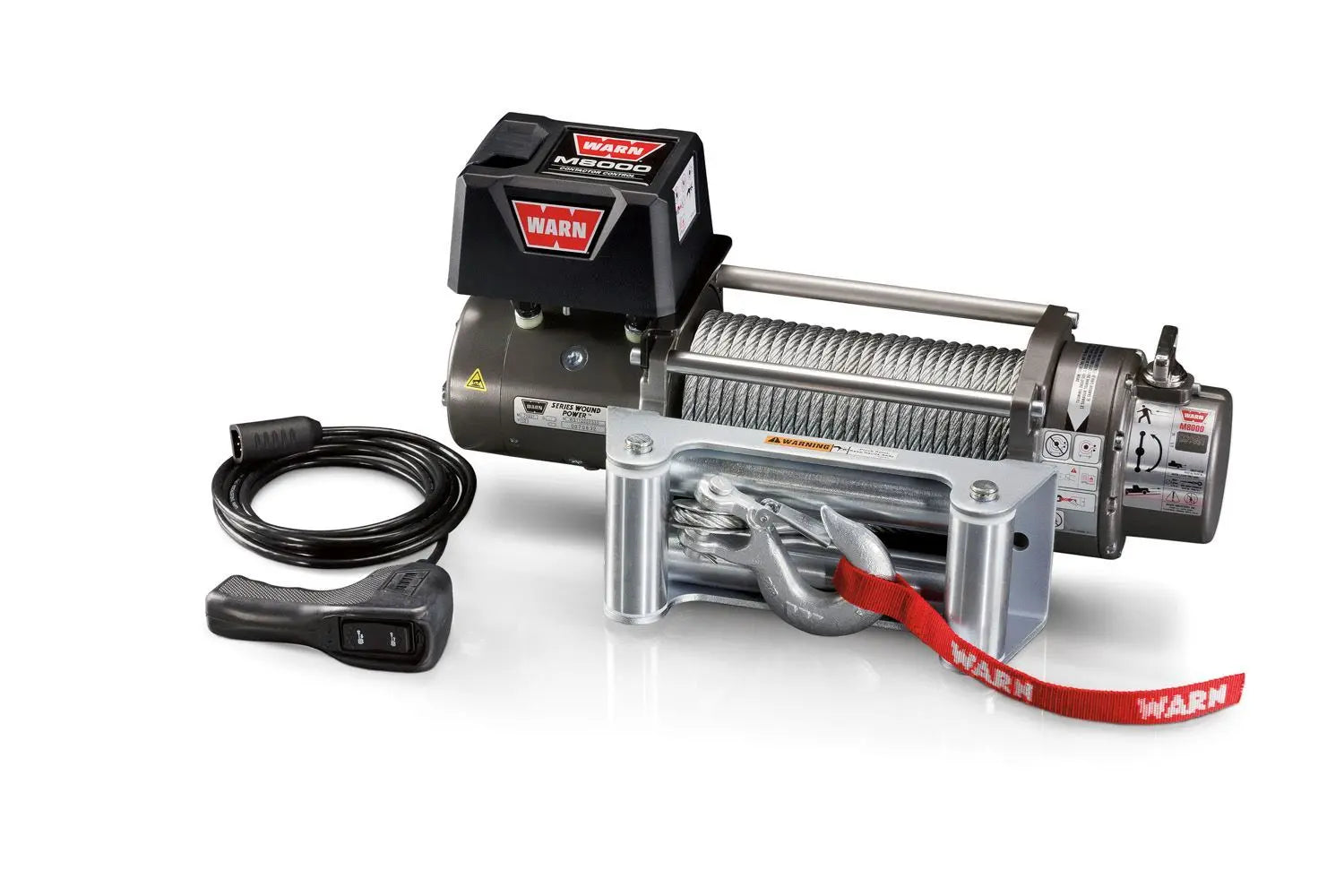

WARN Industries M8 Industrial Winch
WARN Industries M8 Industrial Winch
The M8 winch has been trusted by off-roaders for over twenty years. This 8,000 lb. capacity winch offers outstanding reliability and value. Its low-profile design allows for a variety of mounting options, making it perfect for most trucks, Jeeps and SUVs.
- Premium Series winch that delivers classic design, proven performance, and legendary WARN reliability

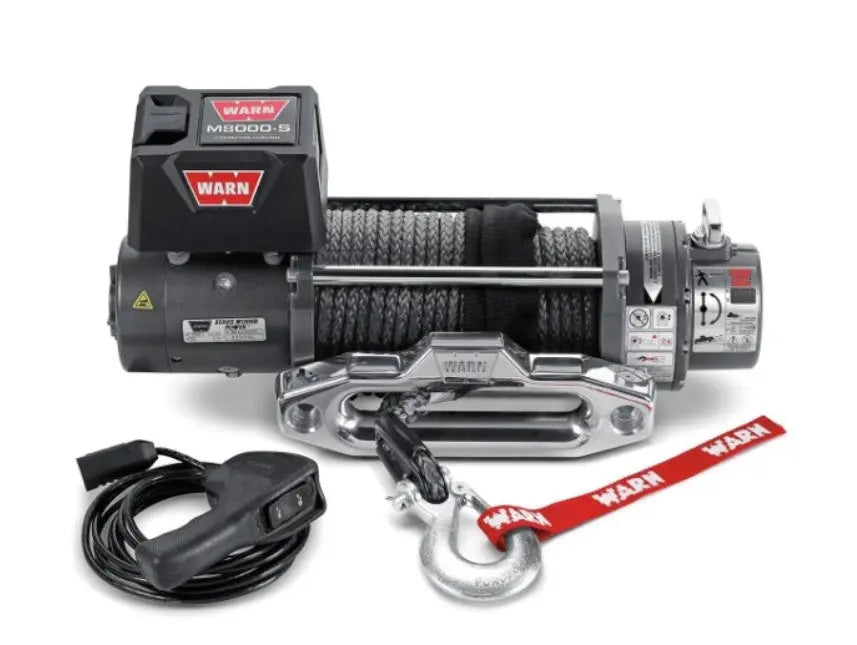

- Available with WARN Spydura™ synthetic rope with matte aluminum hawse fairlead or classic steel cable
- Contactor control box and hand-held, corded remote control
- Low-profile design and separate control box allows for a wide range of mounting options
- Exclusive brake design provides superior control while winching
- Durable 3-stage planetary geartrain for smooth, reliable, operation
- Series-wound, high-speed motor provides fast line speed and strong pulls
- Chip-resistant powder-coated finish
- 100' of steel or synthetic rope
- Limited lifetime warranty (Geartrain), 7 year warranty (electrical)
| TYPE | Electric |
| MOUNT TYPE | Vehicle Mounted |
| RECOMMENDED USE | Vehicle Recovery |
| VOLTAGE | 12 Volt |
| MOTOR HORSEPOWER | 4.8 Horsepower |
| ELECTRICAL CONTROL TYPE | Contactors |
| MOTOR TYPE | Series Wound |
| THERMAL SHUTOFF | No |
| DRIVE GEAR TYPE | Planetary |
| GEAR REDUCTION RATIO | 216:1 |
| FREE SPOOLING | Yes |
| BRAKE TYPE | Mechanical Cone |
| LINE DIAMETER (IN) | 5/16 Inch Steel | 3/8 Inch Synthetic |
| LINE LENGTH (FT) | 100 Feet |
| LINE MATERIAL | Steel | Synthetic |
| FAIRLEAD TYPE | Roller | Hawse |
| CONFORMS TO J706 STANDARDS | No |
| REMOTE TYPE | Handheld Remote Switch |
| MOUNTING HOLE QUANTITY | 4 |
| OPERATION TYPE | Automatic |

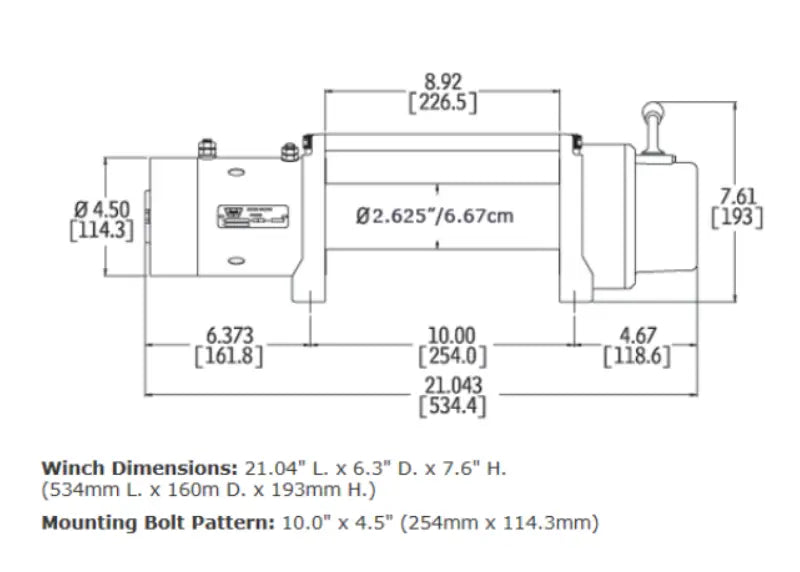

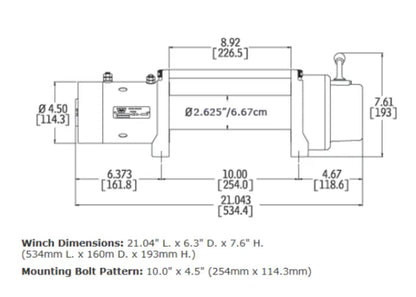

| MOUNTING PATTERN LENGTH (IN) | 10 Inch |
| MOUNTING PATTERN WIDTH (IN) | 4-1/2 Inch |
| INCLUDES MOUNTING HARDWARE | No |
| COLOR | Gray |
| MAX LINE PULL/ LINE SPEED | 8000 Pound/ 4.8 Feet Per Minute |
| MAX AMP DRAW/ LINE PULL | 435 Amp Draw/ 8000 Pound |
Source: https://www.warn.com/m8-winch-26502
