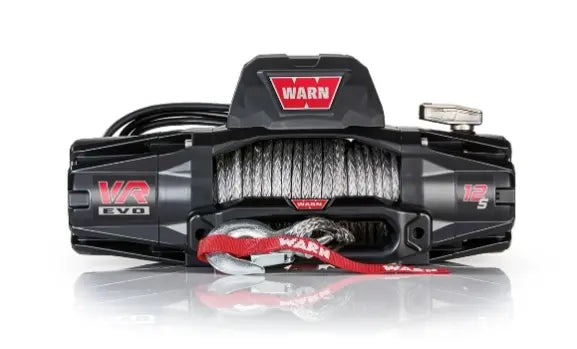

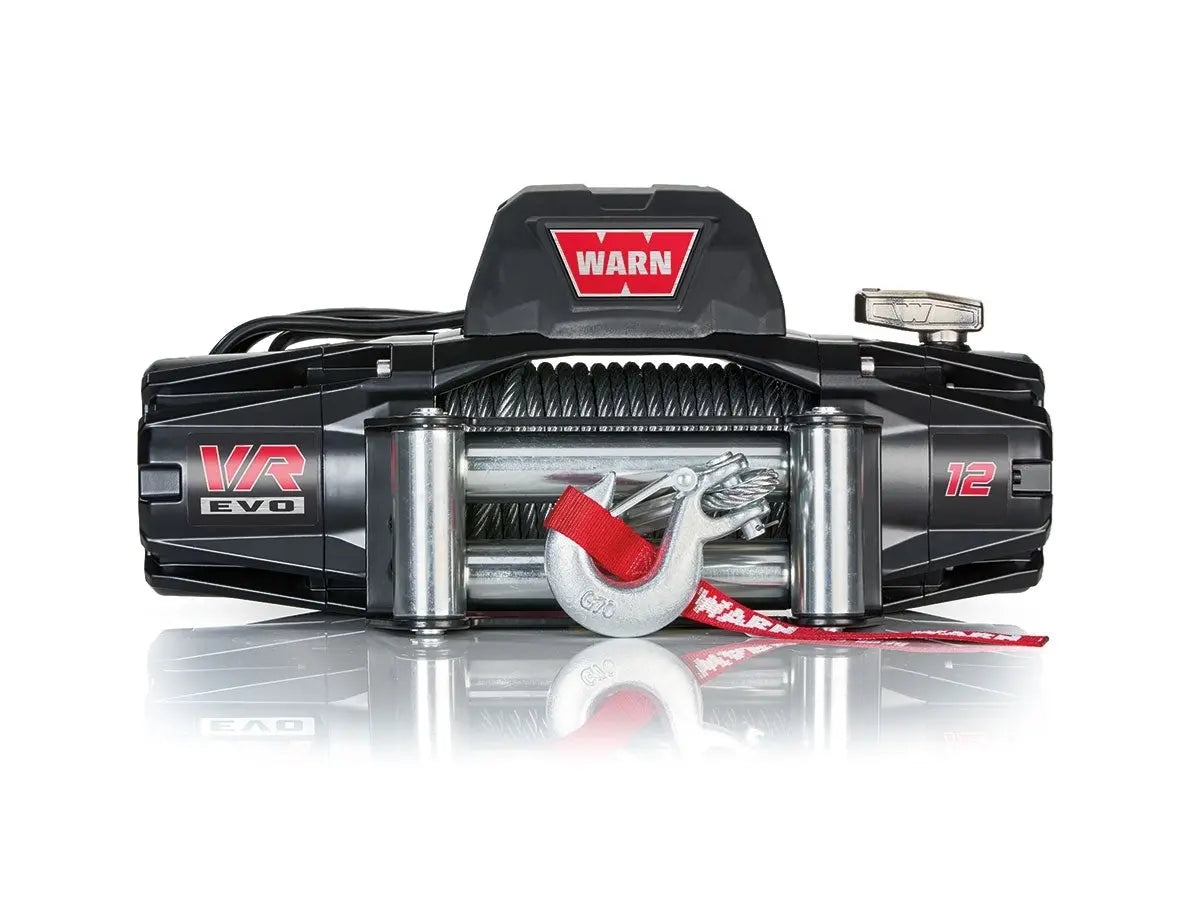

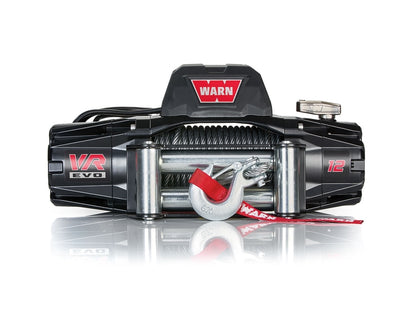

WARN Industries VR EVO 12 Winch
WARN Industries VR EVO 12 Winch
Ideal for 3/4 and 1-ton pickups and all types of large frame rigs that require longer and heavier pulls. The VR EVO 12 features IP68-rated waterproof construction, an ultra-reliable Albright® contactor inside a relocatable control pack, and a state-of-the-art, two-in-one remote for added ease of use and versatility. With it’s fast line-speed and lower amp draw, the VR EVO winches are the hardest-working standard-duty winches we’ve ever made, with tactical styling that looks great up front and at a price that won’t pull you out of your budget.
Source: https://www.warn.com/vr-evo-12-103254 and https://www.warn.com/vr-evo-12-s-103255
• A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw
• IP68-rated waterproof winch construction keeps the elements out
• High-performance Albright contactor delivers maximum reliability
• Control packs can be relocated for low-profile installations
• Two-in-one remote with wired AND wireless options for ease of use and versatility
• Limited lifetime warranty for mechanical parts and 7 years on the electrical
TYPE | Electric |
RECOMMENDED USE | Vehicle Recovery |
MOUNTING LOCATION | Vehicle Mounted |
VOLTAGE | 12 Volt DC |
ELECTRICAL CONTROL TYPE | Albright Contactor |
MOTOR TYPE | Series Wound |
DRIVE GEAR TYPE | 3-Stage Planetary |
GEAR REDUCTION RATIO | 234:1 |
FREE SPOOLING | Yes |
BRAKE TYPE | Spring |
LINE DIAMETER (IN) | 3/8 Inch |
LINE LENGTH (FT) | 85 |
LINE MATERIAL | Steel Cable/Synthetic Rope |
FAIRLEAD TYPE | Roller/Cast Aluminum |
REMOTE TYPE | 2 in 1 plug in remote with wireless capability |
MOUNTING HOLE QUANTITY | 4 |
MOUNTING PATTERN LENGTH (IN) | 10 Inch |
MOUNTING PATTERN WIDTH (IN) | 4-1/2 Inch |
INCLUDES MOUNTING HARDWARE | Yes |
COLOR | Black |
DRUM MATERIAL | Steel |
MAX LINE PULL/ LINE SPEED | 12,000 pounds / 4.0 feet per minute |
MAX AMP DRAW/ LINE PULL | 396 Amps / 12,000 pounds |
