WARN Industries ZEON 12k Winch

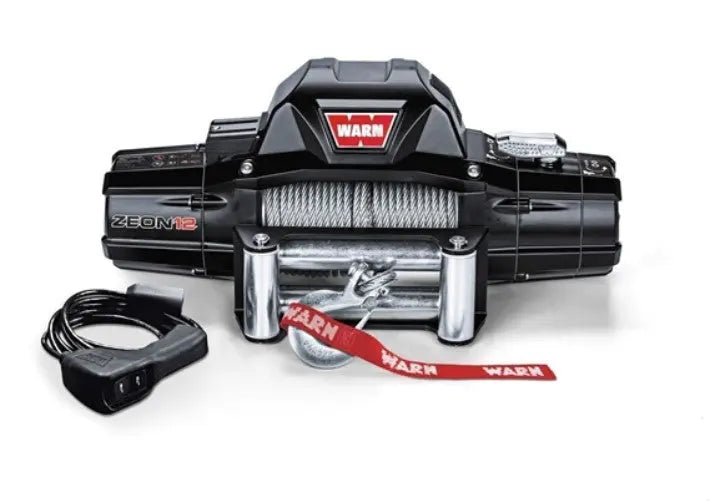

Steel Cable

The WARN ZEON 12 is the face of winching. Bolt one on, and you'll be ready for anything. A top choice for those with heavily-loaded off-road vehicles, the ZEON 12 features innovative design, increased performance and durability, steel rope, and a hefty 12,000 lb. single-line pulling capacity.

The ZEON 12 is a pulling machine you can rely on to rescue you or your buddies, from nearly anything.

12,000 lb. (5443 kg) single-line pulling capacity.
Includes 80' of durable 3/8" galvanized steel wire rope.
Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required and sold separately*).
Gear train and motor deliver reliable pulling power that is fast, and quieter than ever.
Satin-black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion. Improved winch sealing to keep the elements out.
Large diameter winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation.
Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.

*********************************

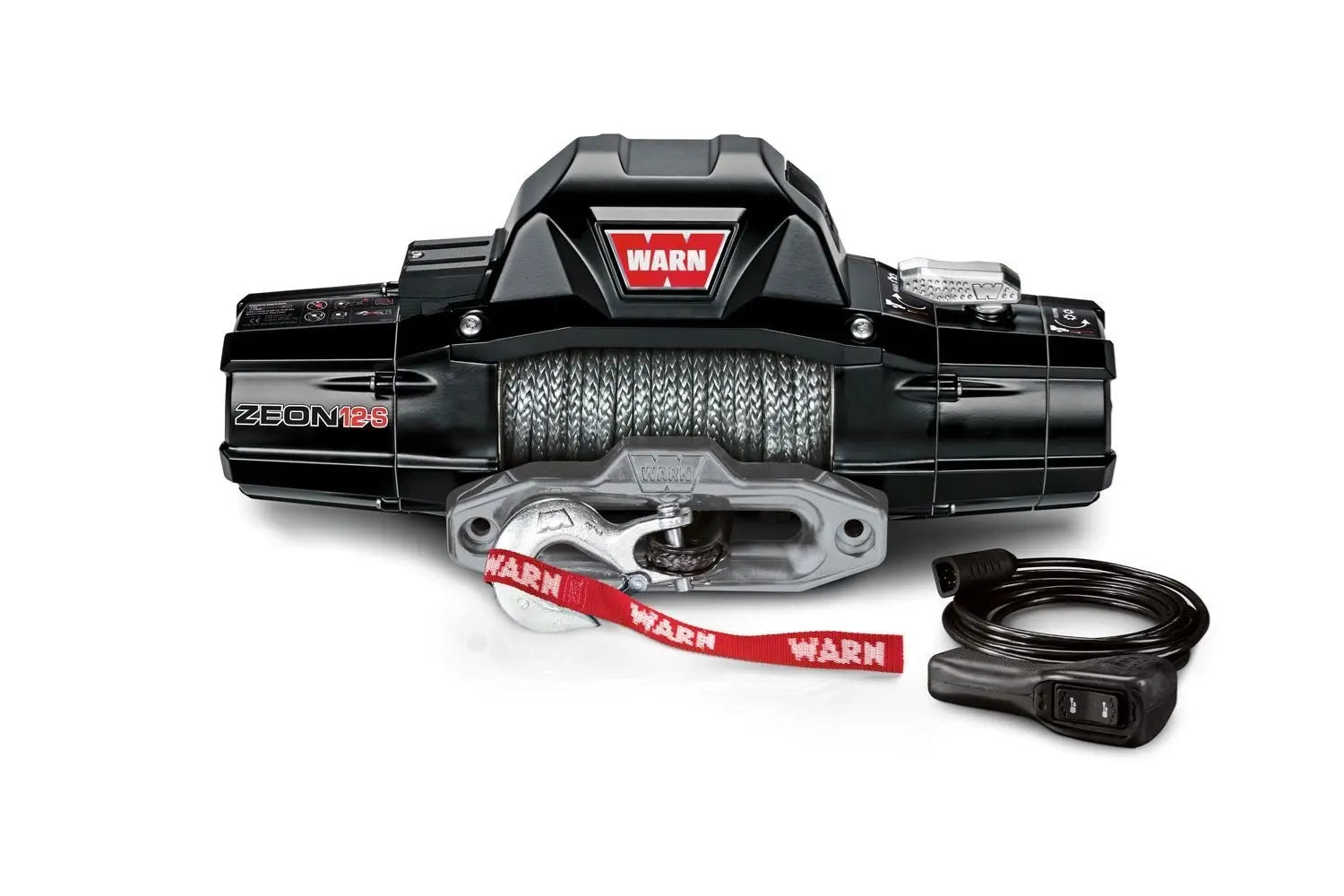

Synthetic Rope

The WARN ZEON® has proven itself in the field and among off roaders. Now you can get the 12,000 Pounds capacity ZEON winch with a Spydura® Pro synthetic rope. The new ZEON 12-S winch trims weight but keeps plenty of muscle for the big jobs and the toughest rescues. And the light, easy-to-handle synthetic rope makes any winching situation a bit easier. It's the perfect choice for heavily loaded off road vehicles.

Legendary WARN reliability and performance; 12,000 lb. (5443 kg) capacity - perfect for the bigger vehicles.
Unique exterior styling and symmetrical design give this winch a look that is advanced, capable, and strong.
New-design planetary gear train and series-wound motor deliver fast, quiet, and reliable pulling power.
Flat black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion.
Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks.
Aluminum winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation.
Robust aluminum structure is durable and helps dissipate heat.
Extreme waterproofing meets rigorous IP68 standards - the highest rating in the WARN Truck/SUV winch lineup.
Contactor control for extreme reliability and weather resistance.
Automatic mechanical cone brake holds the full rated load and offers excellent control while winching.
Ultra-durable metal-reinforced rubberized corded remote with 12' lead.
Includes 80' of 3/8" Spydura Pro synthetic rope and aluminum hawse failead with powder-coat finish.
Proprietary and strongest-in-class Spydura Pro synthetic rope is found on many military vehicles. This rope features a urathane-coated 12-strand braid, heat treated under tension. A 20 ft. Nomex™ heat sleeve protects the rope on the layer nearest the drum.
Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.

*********************************

Specifications

TYPE	Electric
MOUNT TYPE	Vehicle Mounted
RECOMMENDED USE	Vehicle Recovery
VOLTAGE	12 Volt
ELECTRICAL CONTROL TYPE	Contractors / Solenoid
MOTOR TYPE	Series Wound
THERMAL SHUTOFF	No
DRIVE GEAR TYPE	Planetary
GEAR REDUCTION RATIO	216:1
FREE SPOOLING	Yes
BRAKE TYPE	Mechanical Cone
LINE DIAMETER (IN)	3/8 Inch
LINE LENGTH (FT)	80 Feet
LINE MATERIAL	Steel / Synthetic
FAIRLEAD TYPE	Roller / Hawse
REMOTE TYPE	Handheld Remote Switch / 12 Feet Lead
OPERATION TYPE	Automatic
MOUNTING PATTERN LENGTH (IN)	10 Inch
MOUNTING PATTERN WIDTH (IN)	4-1/2 Inch
COLOR	Black
DRUM MATERIAL	Aluminum

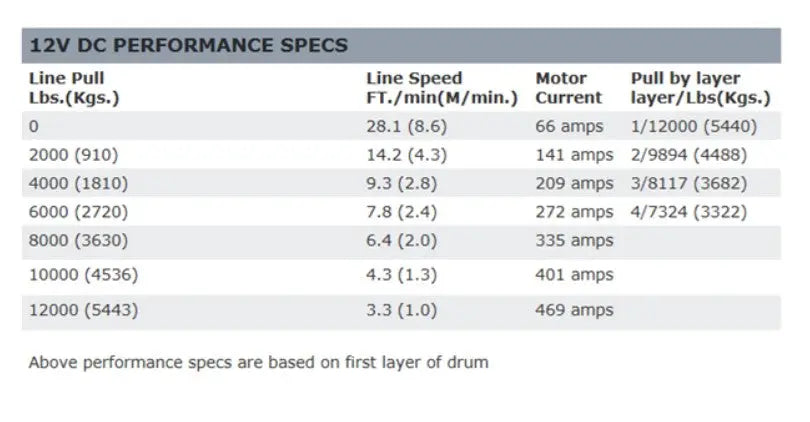

MAX AMP DRAW/ LINE PULL	469 Amp Draw/ 12000 Pound
MAX LINE PULL/ LINE SPEED	12000 Pound/ 3.3 Feet Per Minute
