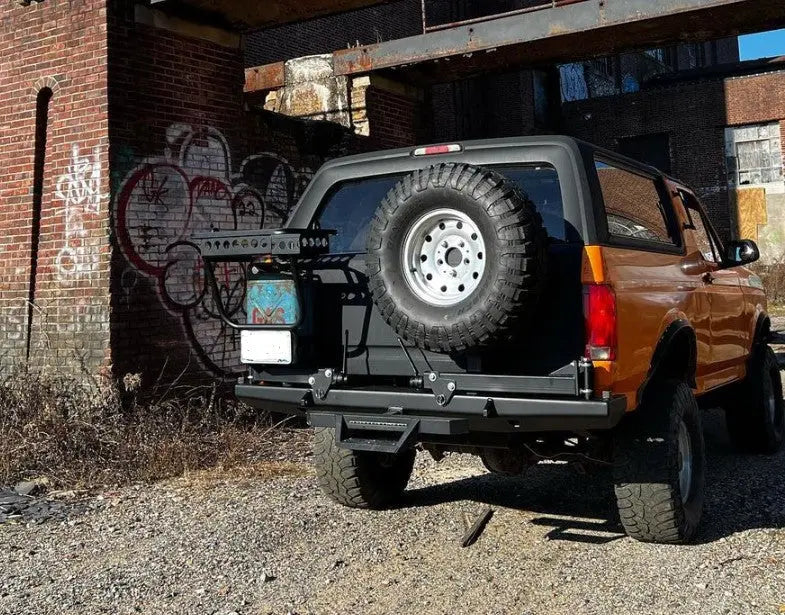

1980-1996 Bronco RockSolid™ Triple Rack Rear Bumper (PF820)

$1,455.50$1,830.00

80-96 Bronco plate steel style rear bumper with tire , Jerry can (or Nato can) and cooler rack. Ships raw steel via truck freight or UPS.

Cooler Rack Basket Interior Dimensions: 24″ Long x 16″ Deep

Edition: Choose from our Kit Edition which is a tack welded kit and will require several hours of welding and grinding to complete or our Welded Edition which comes ready to install (minus the finish). Please note that the Kit Edition does not ship as a flat package and therefore will not be more economical for shipping.

Material Thickness: Choose from our standard 1/4″ material or go with a lighter duty 3/16″ material which is about 40 lbs lighter than our 1/4″ option.

*Note: If you plan on using the receiver to tow, please use your best judgement. Our hitches are unrated but can support the stock towing capacity of a Bronco (we do not claim this on f-series trucks) and our bumper mounting system bolts on the vehicle frame. Small and lightweight single axle trailers are typically safe to tow behind your Bronco. If you tow something that you shouldn’t be towing with your Bronco, you could seriously injure yourself or others should something fail. We are not liable for any damage, loss or injury.

Choose your wheel plate bolt pattern.

Add our new rack locking system that sets your open rack in a static position rather than allowing it to float wildly. See below for more details.

Add tabs to your bumper for tow points or to mount D-Ring Shackles.

Add to wishlist

Description

This sleek bumper is made from CNC cut ¼” plate steel (or 3/16″ steel if you so choose) and offers the best body protection and style for your full-size Bronco.  With its easy bolt-on installation that requires no welding or drilling, it’s hard to beat. Our design wraps around the rear corners to provide our quality protection and includes a 2” unrated receiver hitch (CAN BE ORDERED WITHOUT RECIEVER). Our unrated receivers are only capable of pulling the stock recommended weight for your Bronco.** This very durable and modern design comes with access points for use of a hi-lift jack cut into the bumper (this is for USE of a hi-lift jack not for jack storage). Its angular design also makes it easy to use a tow hook or you can add a set of D-ring tabs for the ultimate tow points.

This bumper includes a unique tire rack designed which holds a maximum of 37” spare tire and a 2nd rack that holds one 5-gallon (20 liter) military style NATO Cans (Jerry Can) and a cooler or ice chest rack that can hold a cooler up to 24” long and 16” wide . These racks are made of 2″x3″ x 0.188 wall rectangular tube. The hinge uses 5/8″ permanently lubricated heim joints to open the racks. This ensures a smooth and easy hinge to maintain. Included with these rugged racks is our fully adjustable cam latch system that will offer many years of rattle free use.

** This statement applies to our 1/4″ bumper. If you plan on using the receiver to tow, please use your best judgement. Our hitches are unrated but can support the stock towing capacity of a Bronco (we do not claim this on f-series trucks) and our bumper mounting system bolts on the vehicle frame. Small and lightweight single axle trailers are typically safe to tow behind your Bronco. If you tow something that you shouldn’t be towing with your Bronco, you could seriously injure yourself or others should something fail. We are not liable for any damage, loss or injury.

New Rack Lockout System

Tired of your  tire carrier swinging around and hitting the side of your truck or swinging back on you when you’re trying to get into the back? This is the answer you have been waiting for! Our new system stops the carrier automatically with our new t-handle pin* system. The t-handles are 1/2″  billet aluminum with an anodized black handle.

Looking for a cooler that will fit? We recommend:

Canyon Outfitter 35 Qt

  • More insulation than just about any other cooler on the market.
  • Sized right for weekend getaways and rowdy game days when a cold beverage is a must.
  • Named the “Ultimate High-End Cooler” by Four Wheeler.
  • Easily fits in a jeep or side by side for on-the-go access.
  • One-piece bombproof rotomolded construction for a lifetime of use.
  • Drain plug, cross compatible with many major cooler brands.
  • 2” Tiedown slots (access contents while it’s tied down)
  • Environmentally friendly pressure-injected foam insulation
  • Molded-in unbreakable solid aluminum hinge
  • EZ-Cam Family Friendly Latch
  • AirTight Seal
  • IGBC Certification Number 3769
  • Holds 2 baskets (sold separately)
  • Covered by Canyon’s no-hassle, free parts lifetime warranty.



Capacity (Quarts)35
Capacity (12 oz. cans)32 max ice retention / 64 max capacity
Exterior Dimensions (LxWxH)23.75 top (23″ bottom) x 15.25 top (14.75 bottom) x 17
Interior Dimensions (LxWxH)17.5 x 9.75 x 12.5
Weight22 lbs.
MaterialRotomolded Kayak Plastic

35 Quarts 22 lbs empty External : 15.25″x17″x23.75″ Internal : 9.75″x12.5″x17.5″

NOTE:

There have been several people who have successfully put these bumpers on pickup trucks. Please keep in mind that these bumpers are made for the Ford Bronco and the stock axles they come with. These bumpers will fit on F-Series pickups however the frame span is not the same, nor is the bolt pattern for the spare tire and it may require moderate to heavy modification to install the bumper properly.  You will have to order the correct wheel plate to make the spare tire fit. 8 lug wheel plates are an additional $45. The frame mounts will also need to be ordered unwelded and you will need to modify/create a custom bracket for mounting. We DO NOT recommend putting these bumpers on pickup trucks unless you have an experienced fabricator contracted for the job. We also DO NOT provide installation assistance in this case.

Additional information

Weight215 lbs
Dimensions78 × 14 × 40 in
Edition

Kit, Welded

Material Thickness

1/4", 3/16" (Lighter) -$100
