66-77 Bronco Spare Tire Rear Bumper | Single Rack | RockSolid Series

Description

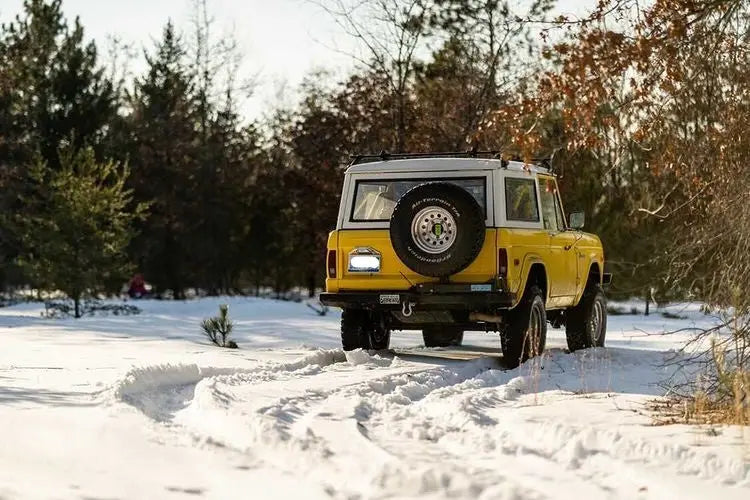

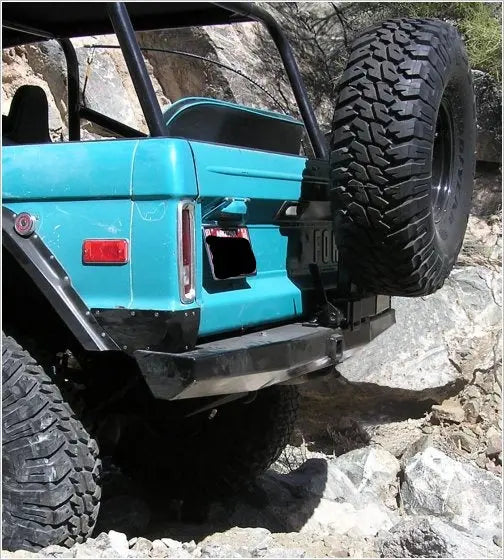

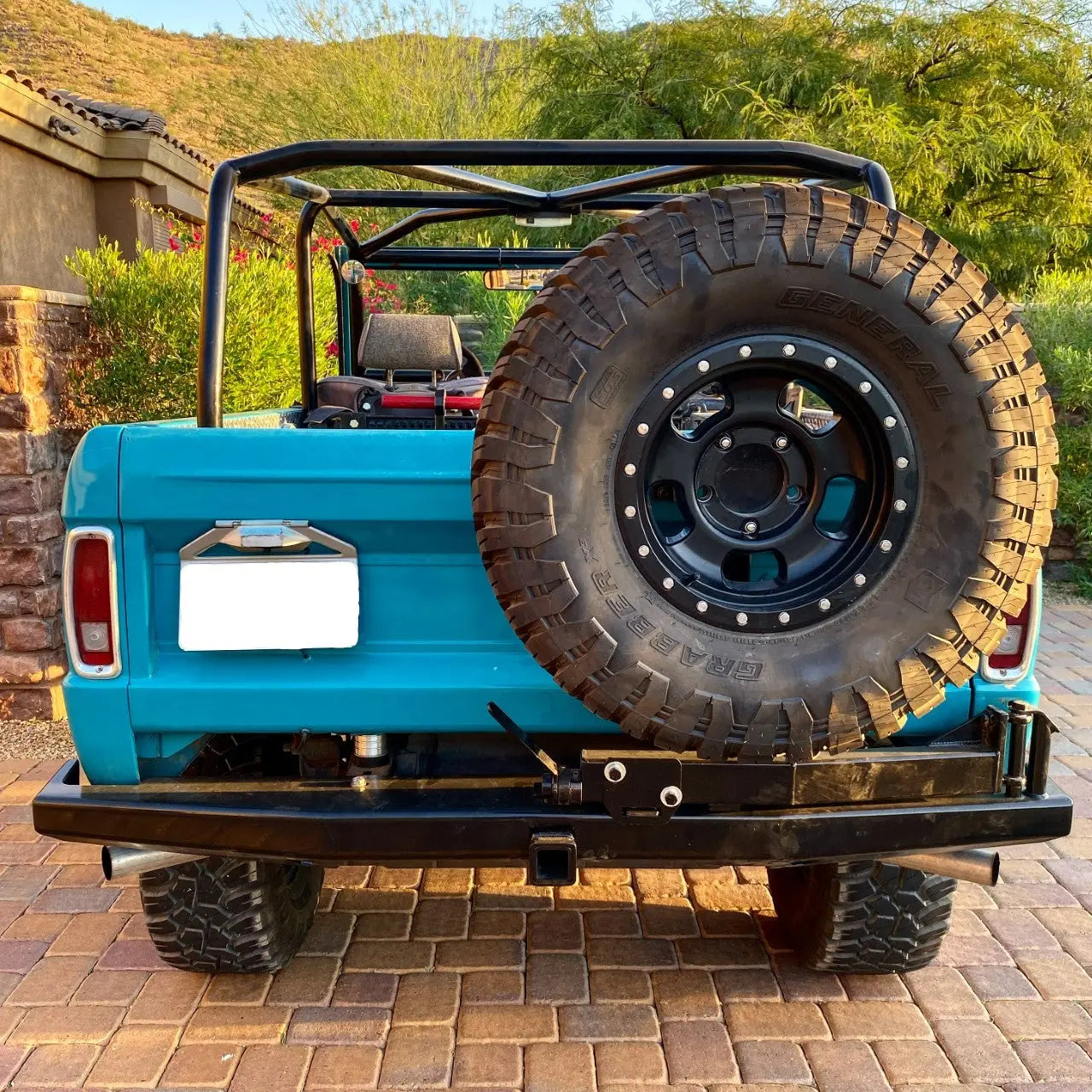

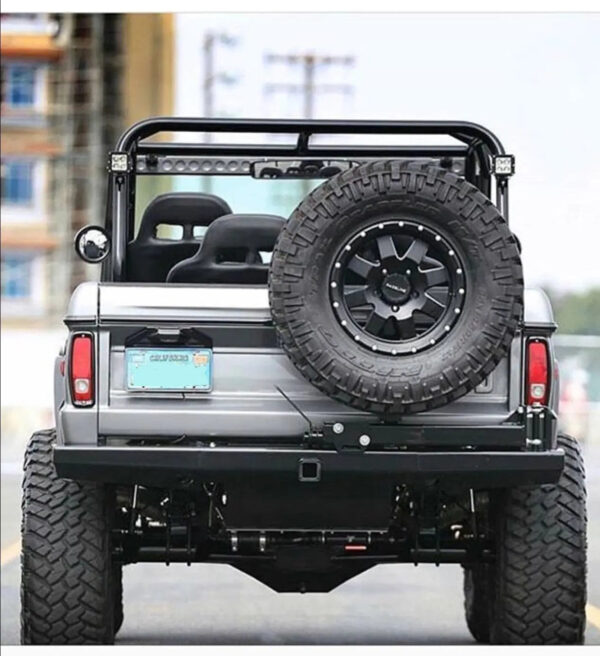

This bumper includes a unique rack designed to hold up to a 37” spare tire with 5.25″ backspacing. If you are running a wheel with a larger backspacing, you will need to use wheel spacers. This rack is made of 2″ x 3″ x 0.188 wall rectangular tube. The hinge uses two 3/4″ permanently lubricated heim joints to open the rack. This ensures a smooth and easy hinge to maintain. Included with this rugged rack is our coveted Cam latch mechanism which is adjustable and offers many years of rattle free use. The rack is also fitted with our new Rack Lockout system which stops the open carrier at a safe location preventing it from swinging into the side of your truck and also back at you. Lastly, we included a 2” unrated receiver hitch which is capable of pulling the stock recommended weight for your Bronco.**

*This statement applies to our Fully Welded edition. The other editions require several hours of welding and grinding. Additionally, If you order a body lift, there may be a couple holes you have to drill.
**These are access holes for use of the Hi-Lift jack. We do not currently offer a solution for Hi-Lift jack storage.
***This statement applies to our 1/4″ bumper. If you plan on using the receiver to tow, please use your best judgement. Our hitches are unrated but can support the stock towing capacity of a Bronco (we do not claim this on f-series trucks) as our bumper mounting system bolts on the vehicle frame. Small and lightweight single axle trailers are typically safe to tow behind your Bronco. If you tow something that you shouldn’t be towing with your Bronco, you could seriously injure yourself or others should something fail. We are not liable for any damage, loss or injury.
Edition
Box Kit: Completely disassembled bumper kit shipped in a box. Only recommended for experienced welders/fabricators as it requires several hours of welding and grinding to complete. The lead time for this product is significantly less. (Typically a 3-4 week lead time)
Tack Kit: A tack welded kit that arrives in its true form and will require several hours of welding and grinding to complete. It is not a flat kit and will not be more economical when shipping.
Welded: Arrives as unfinished raw-steel ready to install. We ALWAYS recommend test fitting the bumper to your truck BEFORE applying paint or powder coat. Once you have successfully mounted the bumper to your truck, it is safe to remove it and apply a finish.
Add-On’s
Adjustable Body Lift: Add an adjustable body lift to your bumper. This system uses pucks to set the bumper at the appropriate location when your truck body is lifted off the frame. See our install guide for more information about how it works.

8-Lug Wheel Plate: If your truck has Super Duty axles under it, you need to order the appropriate wheel plate. Choose from 8×6.5″ or 8x170mm.
