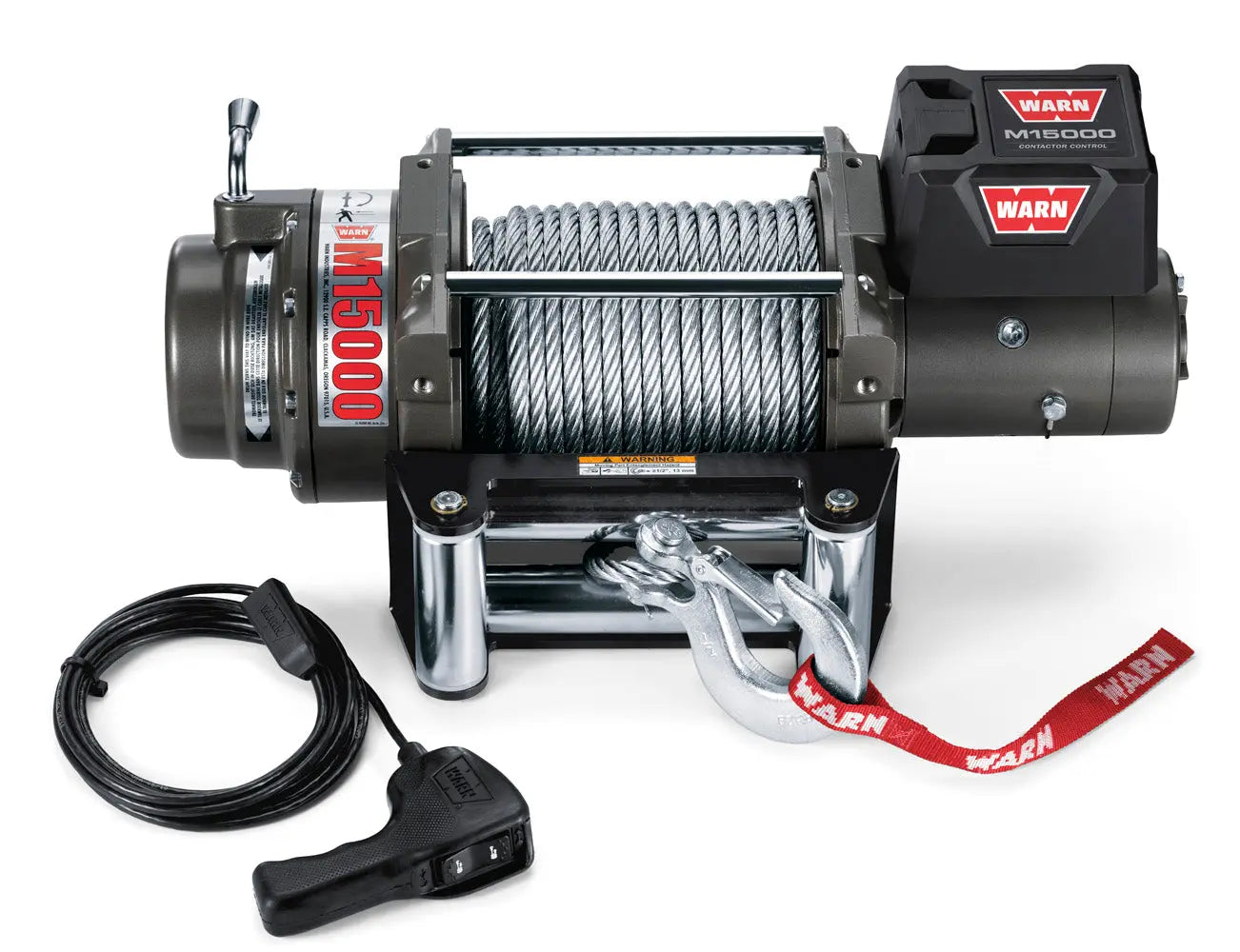

WARN Industries M15 Heavyweight Winch

$2,572.99

This Warn Industries M15000 Series 12 volt electric Winch is vehicle mounted and has a pull capacity of 15,000 pounds. It has a 90 foot wire rope.

NOTE: This winch is NOT compatible wit the 1966-1977 Bronco LowPro Front Bumper

Add to wishlist

Description

When you work hard enough to need a really big truck, you’ll want a Winch with enough capacity to get the job done. The Warn Winch boasts high strength carrier plates to handle the gear train stresses of a 15,000 Pounds Load. The gear ratio is 315:1, with 90 Foot of 7/16 Inch wire rope equipped with a large latched hook. The control pack is designed for generous clearance and ease of access

  • Most Powerful Winches On The Market
  • Pulling Capacity Up To 16,500 Pounds
  • High Strength Carrier Plates To Handle The Heavy Gear Train Stresses
  • Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.

Specifications

TYPE Electric
MOUNT TYPE Vehicle Mounted
RECOMMENDED USE Vehicle Recovery
VOLTAGE 12 Volt
MOTOR HORSEPOWER 4.6 Horsepower
ELECTRICAL CONTROL TYPE Contactors
MOTOR TYPE Series Wound
THERMAL SHUTOFF No
DRIVE GEAR TYPE Planetary
GEAR REDUCTION RATIO 315:1
FREE SPOOLING Yes
BRAKE TYPE Mechanical Cone
LINE DIAMETER (IN) 7/16 Inch
LINE LENGTH (FT) 90 Feet
LINE MATERIAL Steel
FAIRLEAD TYPE Roller
CONFORMS TO J706 STANDARDS No
REMOTE TYPE Handheld Remote Switch
MOUNTING HOLE QUANTITY 4
OPERATION TYPE Automatic
MOUNTING PATTERN LENGTH (IN) 10 Inch
MOUNTING PATTERN WIDTH (IN) 4-1/2 Inch
INCLUDES MOUNTING HARDWARE No
COLOR Gray
MAX LINE PULL/ LINE SPEED 15000 Pound/ 2.48 Feet Per Minute
MAX AMP DRAW/ LINE PULL 460 Amp Draw/ 15000 Pound
Source: https://www.warn.com/m15-12v-heavyweight-winch-47801

Additional information

Weight 135 lbs
Dimensions 28 × 13 × 10 in
