1966-1977 Bronco Xtreme Family Interior Tube Support (PF356)

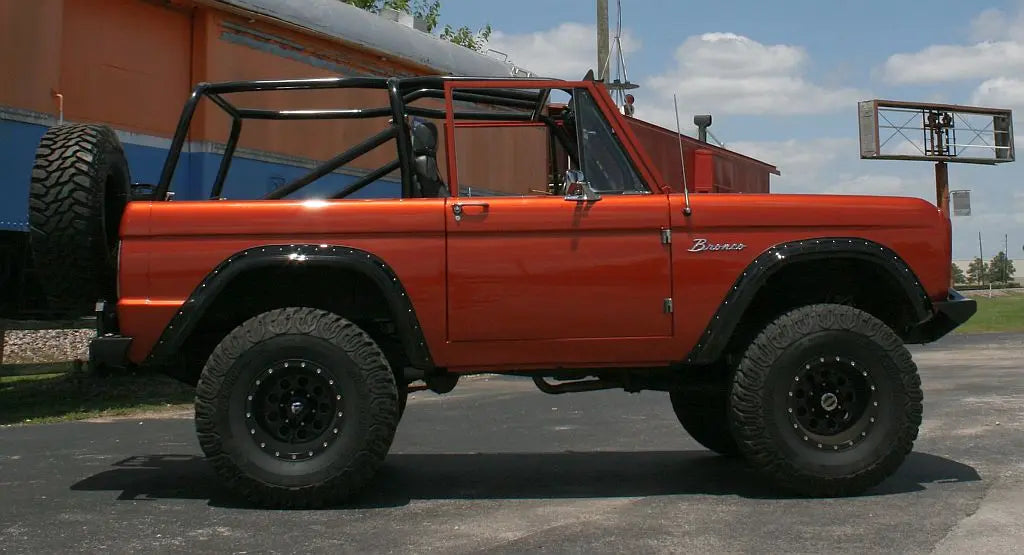

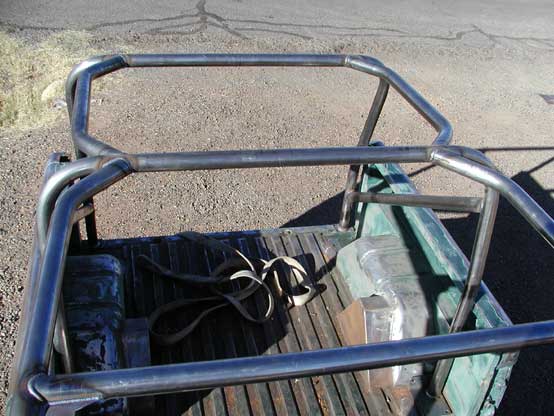

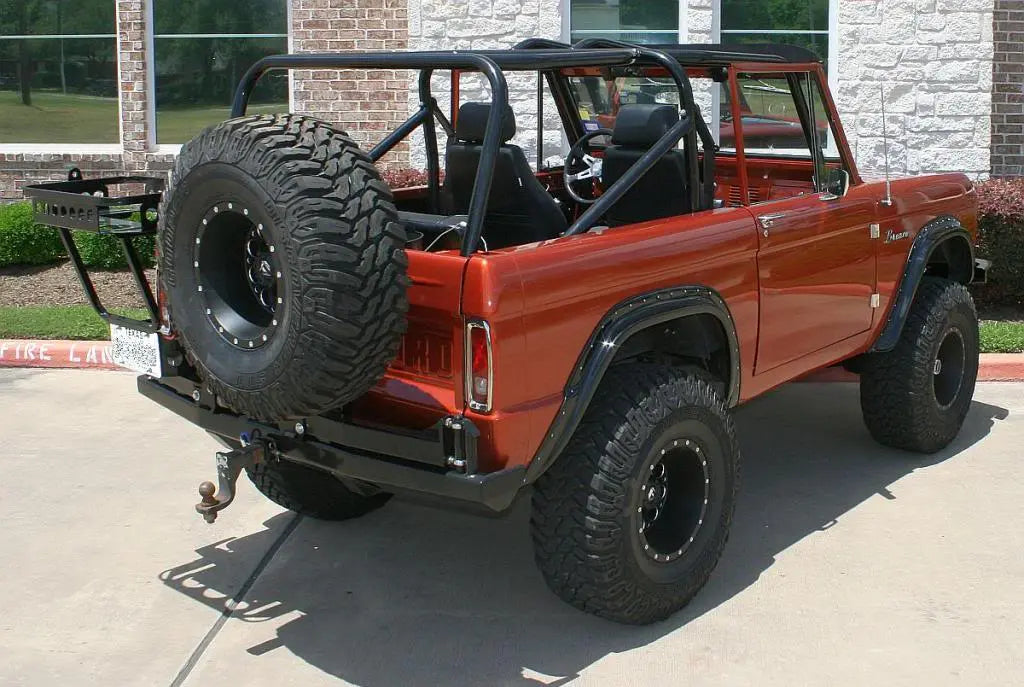

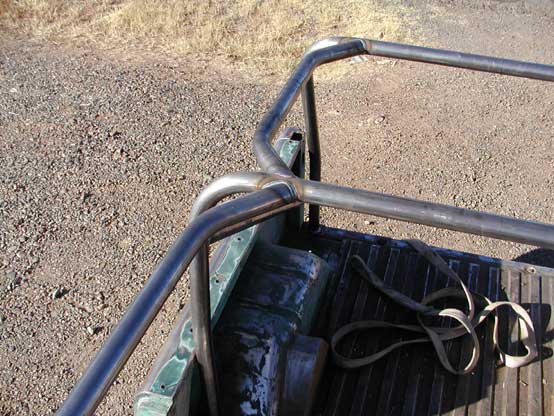

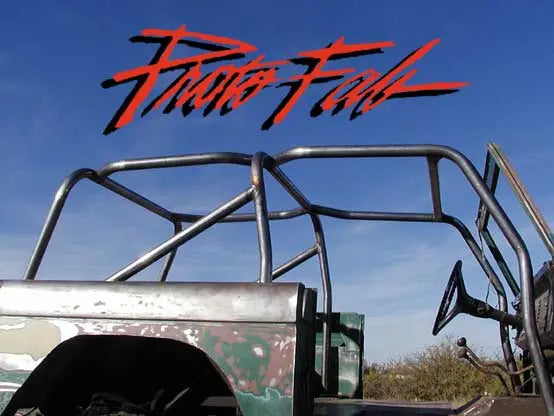

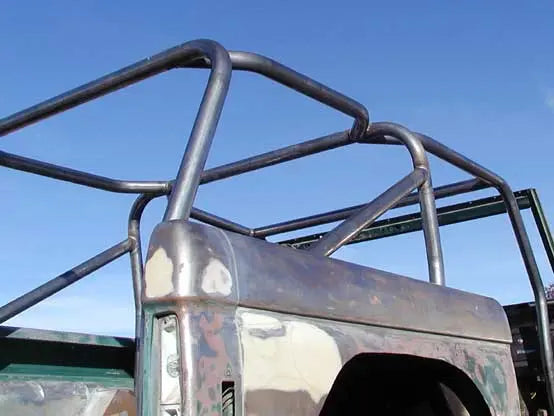

The 1966-1977 Bronco Xtreme Family Interior Tube Support provides the ultimate protection for your Bronco. It offers full front cab protection as well as rear protection. It meets the truck at 6 of its strongest points and includes the rear Family Hoop which boxes in the back half of the cage making it stronger and safer for you and all your precious cargo. We utilize Sprint Car bends at the joints which maximizes strength, distributes stress, and optimizes rigidity. These bends allow the cage to absorb impact forces more effectively, prevent stress concentrations at sharp corners, and enhance the overall rigidity of the structure.

It is made from 2" 0.120 wall tubing and is designed to ensure plenty of headroom and to provide the security and safety that is always first priority on our products.

Tube Kit: None of the components are welded together. Tubes are coped for the back half however the front half will need to be assembled inside the truck and coped and cut to fit. Requires an experienced installer with metal working capabilities such as welding, cutting, coping and bending. It is a common occurrence to have to move the metal around when tack welding it together. Please tack weld everything before doing a final weld.

Completely Welded: The entire product is welded together. If you added additional products, they may not be welded in. Please verify before ordering.

Seat Belts

We do not weld in seat belt tabs due to the varying types of belts available and because it is better to measure where you'd like them with the cage sitting in your truck and the seat still installed. We also do not recommend using bungs for your seat belts because when you drill into the legs, you weaken the integrity of the legs. It is best to use a weld on tab vs a bung. You can find tabs at this website for a couple dollars a piece. https://motobilt.com/products/seat-belt-tab-steel

For any questions, please don't hesitate to reach out to us at 928-632-0216 or info@protofab4x4.com

$1,049.75 USD
