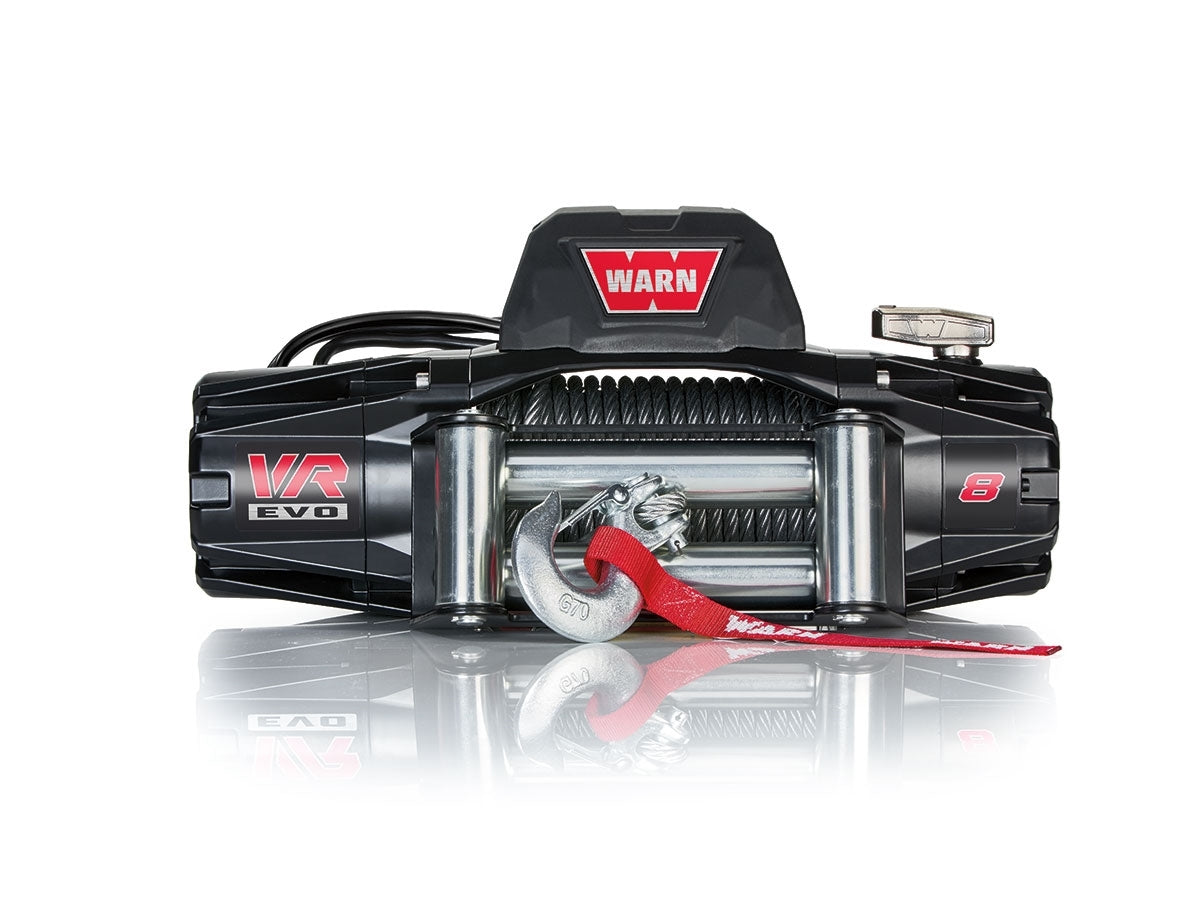

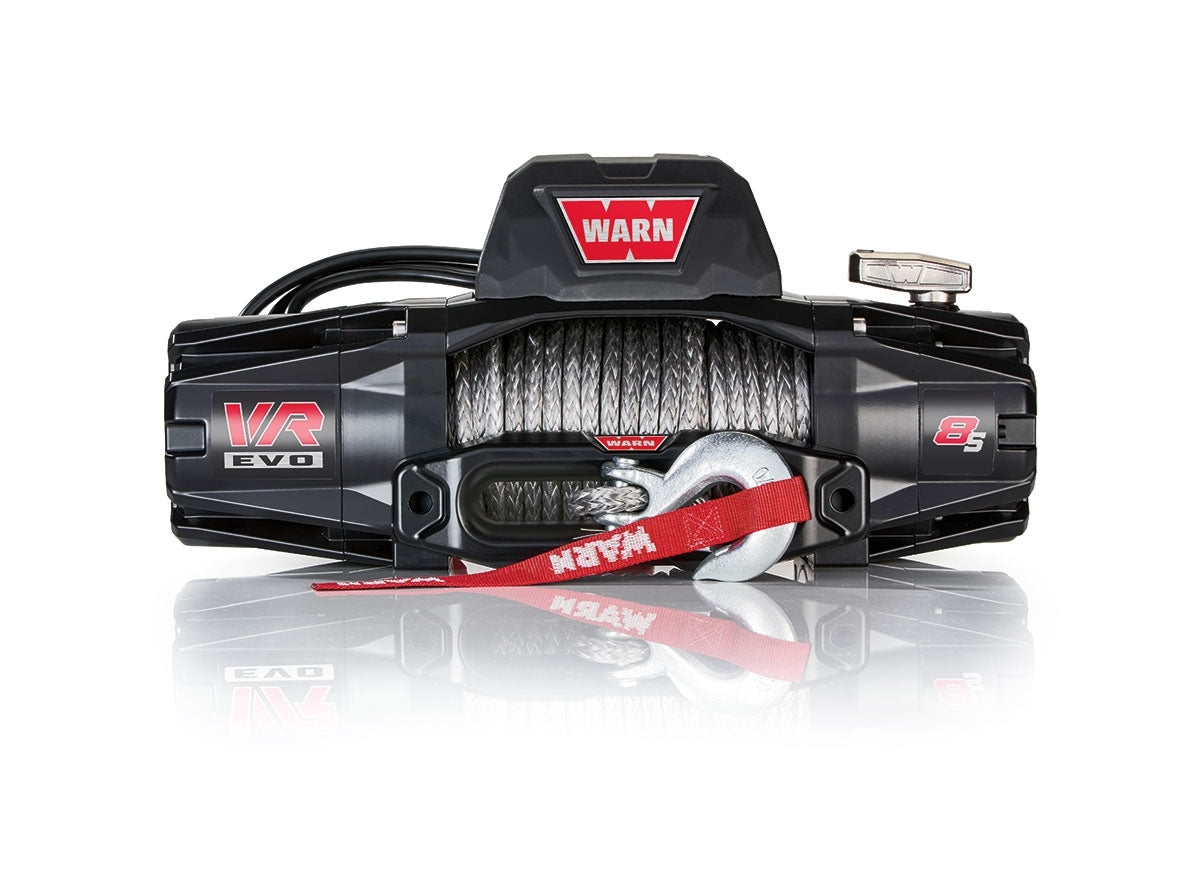

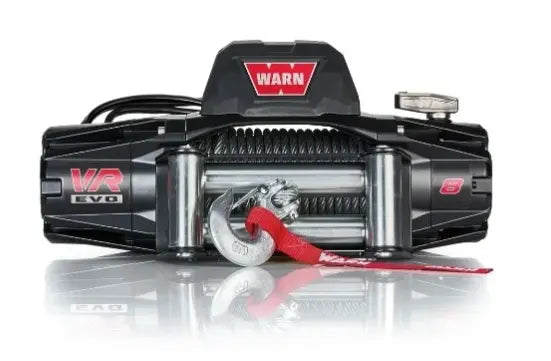

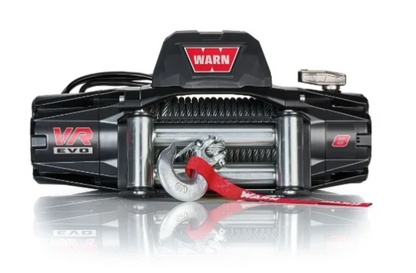

WARN Industries VR Evo 8 Winch
WARN Industries VR Evo 8 Winch
• A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw
• IP68-rated waterproof winch construction keeps the elements out
• High-performance Albright contactor delivers maximum reliability
• Control packs can be relocated for low-profile installations
• Durable, one-piece cast-aluminum tie-plate for added strength and durability
• Two-in-one remote with wired AND wireless options for ease of use and versatility
• Limited lifetime warranty for mechanical parts and 7 years on the electrical
Specifications
| TYPE | Electric |
| RECOMMENDED USE | Vehicle Recovery |
| MOUNTING TYPE | Vehicle Mounted |
| VOLTAGE | 12 Volt DC |
| ELECTRICAL CONTROL TYPE | Albright Contactor |
| MOTOR TYPE | Series Wound |
| DRIVE GEAR TYPE | 3-Stage Planetary |
| GEAR REDUCTION RATIO | 218:1 |
| FREE SPOOLING | Yes |
| BRAKE TYPE | Spring |
| LINE DIAMETER (IN) | 5/16 Inch |
| LENGTH (FT) | 90 |
| LINE MATERIAL | Steel / Synthetic |
| FAIRLEAD TYPE | Roller / Cast Aluminum |
| REMOTE TYPE | 2-in-1 plug in remote with wireless capability |
| MOUNTING HOLE QUANTITY | 4 |
| MOUNTING PATTERN LENGTH (IN) | 10 Inch |
| MOUNTING PATTERN WIDTH (IN) | 4-1/2 Inch |
| INCLUDES MOUNTING HARDWARE | Yes |
| COLOR | Black |
| MAX LINE PULL/ LINE SPEED | 8000 Pound / 6.0ft per minute |
| MAX AMP DRAW/ LINE PULL | 298 Amps / 8000 Pound |
| DRUM MATERIAL | Steel |
Source: https://www.warn.com/vr-evo-8-s-103251 / https://www.warn.com/vr-evo-8-103250
